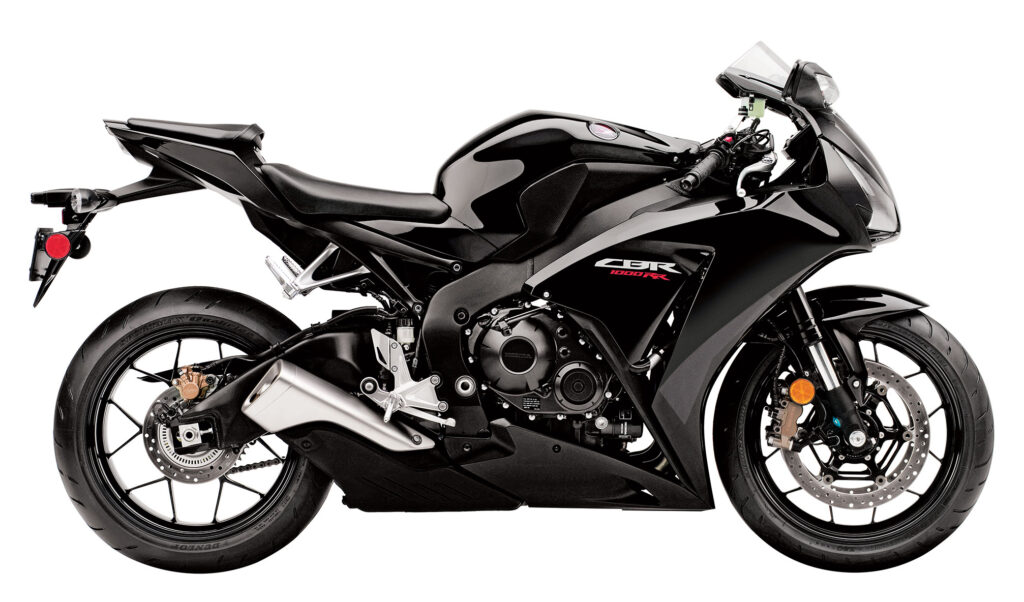

These are the known mechanical and performance specifications for your 2014 Honda CBR1000RR ABS.
Basic Specs
Year2014
MakeHonda
ModelHonda CBR1000RR ABS
TypeSport
CostUS$ 14999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement999.00 ccm (60.96 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression12.3:1
Bore/Stroke76.0 x 55.1 mm (3.0 x 2.2 inches)
Valves/Cylinder4
FuelingInjection. Programmed Dual Stage Fuel Injection (PGM-DSFI) with 46mm throttle bodies, Denso 12-hole injectors
IgnitionComputer-controlled digital transistorized with 3-D mapping
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
Clutch
Driveline#530 O-ring-sealed chain
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.70 litres (4.68 gallons)
Emissions
Chassis
Frame Type
Rake23.0°
Trail96 mm (3.8 inches)
Front Suspension43mm inverted Big Piston fork with spring preload, rebound and compression damping adjustability
Front Travel109 mm (4.3 inches)
Rear SuspensionUnit Pro-Link® Balance Free Rear shock with spring preload, rebound and compression-damping adjustability
Rear Travel137 mm (5.4 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,135 mm (44.7 inches)
Total Length2,077 mm (81.8 inches)
Total Width685 mm (27.0 inches)
Ground Clearance
Wheelbase1,410 mm (55.5 inches)
Dry Weight320.0 kg (705.5 pounds)
Wet Weight200.0 kg (440.9 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/50-ZR17
Front BrakesDouble disc. ABS. Floating discs. Four-piston calipers. Radially mounted.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS.
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
Model ID: CBR1000RR ABS
