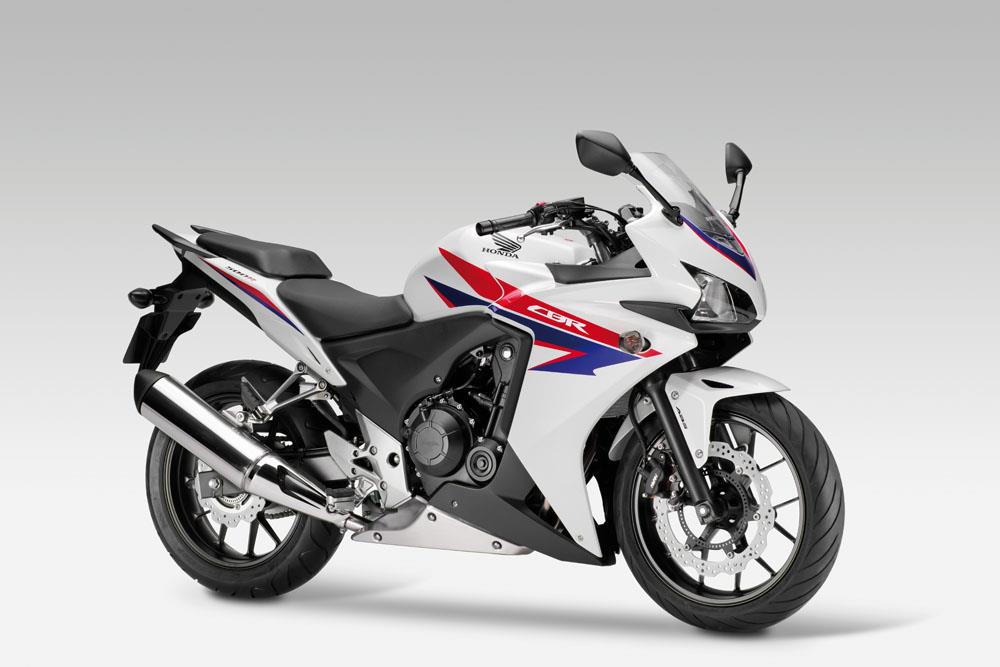

2014 Honda CBR500R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Honda CBR500R.

Basic Specs

Year2014
MakeHonda
ModelHonda CBR500R
TypeSport
CostUS$ 6299. Prices depend on country, taxes, accessories, etc.
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement471.00 ccm (28.74 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression10.7:1
Bore/Stroke67.0 x 66.8 mm (2.6 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI with 34mm throttle bodies
IgnitionComputer-controlled digital transistorized with electronic advance
Exhaust
Lubrication
CoolingLiquid
Spark Plugs

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
DrivelineO-ring-sealed chain
Chain Clutch Plates

Performance

Horespower
Torque
Top Speed
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity15.52 litres (4.10 gallons)
Emissions
Fuel Bottles & Cans

Chassis

Frame Type
Rake25.5°
Trail103 mm (4.1 inches)
Front Suspension41mm fork
Front Travel122 mm (4.8 inches)
Rear SuspensionPro-Link single shock with nine-position spring preload adjustability
Rear Travel104 mm (4.1 inches)
Seat
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,410 mm (55.5 inches)
Dry Weight
Wet Weight192.8 kg (425.0 pounds)
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre160/60-17
Front BrakesDouble disc. Wave disc. Two-piston calipers.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Wave disc. Single-piston caliper.
Rear Brake Diameter240 mm (9.4 inches)
Wheels
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the Honda CBR500R. This Sport model is powered by a In-line four, four-stroke engine with 471.00 ccm (28.74 cubic inches) of actual displacement before 10.7:1 compression. Fueling is metered via Injection. PGM-FI with 34mm throttle bodies allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda CBR500R is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 160/60-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Wave disc. Two-piston calipers. front brakes and Single disc. Wave disc. Single-piston caliper. rear brakes. The Honda CBR500R was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CBR500R
