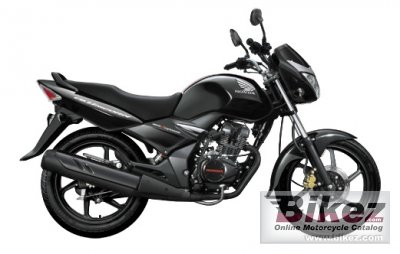

2014 Honda Dazzler Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Honda Dazzler.

Basic Specs

Year2014
MakeHonda
ModelHonda Dazzler
TypeSport
Cost

Engine

Displacement149.10 ccm (9.10 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.6:1
Bore/Stroke58.0 x 57.9 mm (2.3 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionDigital CDI (Multi Mapping)
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveBelt
Clutch
Driveline

Performance

Horespower14.00 HP (10.2 kW)
Torque13.00 Nm (1.3 kgf-m or 9.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.00 litres (3.17 gallons)
Emissions

Chassis

Frame Type
Rake27.0°
Trail86 mm (3.4 inches)
Front SuspensionTelescopic Fork
Front Travel89 mm (3.5 inches)
Rear SuspensionMono Suspension: 3 Step Adjustable
Rear Travel
Seat
Seat Height759 mm (29.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,085 mm (42.7 inches)
Total Length2,073 mm (81.6 inches)
Total Width754 mm (29.7 inches)
Ground Clearance
Wheelbase1,323 mm (52.1 inches)
Dry Weight
Wet Weight138.0 kg (304.2 pounds)

Wheels & Brakes

Front Tire/Tyre80/100-–17
Rear Tire/Tyre110/80-–17
Front BrakesSingle disc
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
WheelsFront tyre

Comments

It appears you're interested in specifications for the Honda Dazzler. This Sport model is powered by a Single cylinder, four-stroke engine with 149.10 ccm (9.10 cubic inches) of actual displacement before 10.6:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 14.00 HP (10.2 kW) horsepower and 13.00 Nm (1.3 kgf-m or 9.6 ft.lbs) torque. According to our records engine heat of the Honda Dazzler is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 80/100-–17 and the rear is 110/80-–17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Honda Dazzler was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Sold in India.
