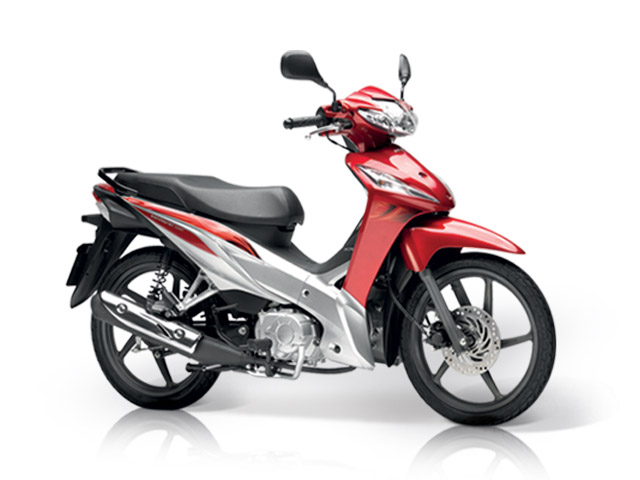

These are the known mechanical and performance specifications for your 2014 Honda Wave 110i.
Basic Specs
Engine
Displacement109.10 ccm (6.66 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke50.0 x 55.6 mm (2.0 x 2.2 inches)
Valves/Cylinder2
FuelingInjection
IgnitionDC-CDI (Capacitor Discharge Ignition)
Exhaust
Lubrication
CoolingAir
Drivetrain
Gearbox4-speed
Final Drive
ClutchMulti Plate Wet Clutch and Automatic Centrifugal Clutch
Driveline
Performance
Horespower9.39 HP (6.9 kW)
Torque9.00 Nm (0.9 kgf-m or 6.6 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity3.70 litres (0.98 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height669 mm (26.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,071 mm (42.2 inches)
Total Length1,885 mm (74.2 inches)
Total Width709 mm (27.9 inches)
Ground Clearance147 mm (5.8 inches)
Wheelbase1,221 mm (48.1 inches)
Dry Weight94.0 kg (207.2 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre70/90-17
Rear Tire/Tyre80/90-17
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
WheelsAlloy
