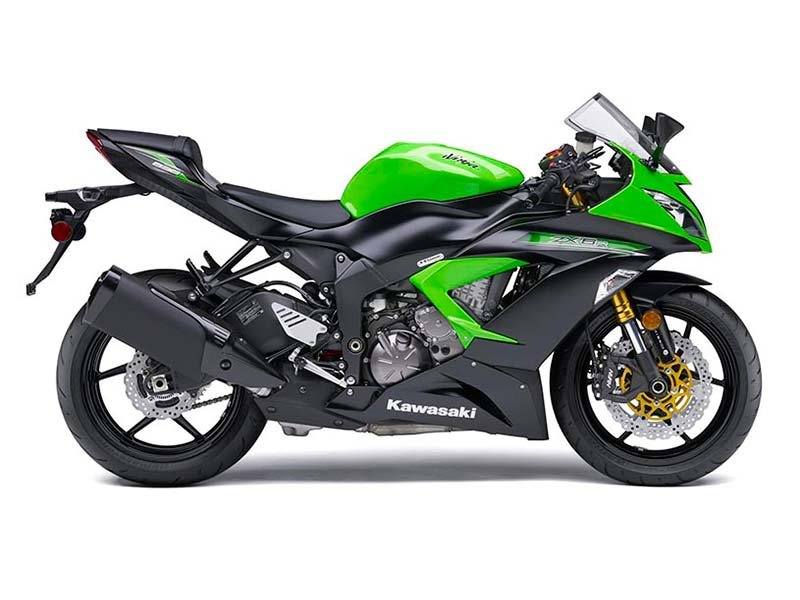

These are the known mechanical and performance specifications for your 2014 Kawasaki Ninja ZX-6R ABS.
Basic Specs
Year2014
MakeKawasaki
ModelKawasaki Ninja ZX-6R ABS
TypeSport
CostUS$ 12699. Prices depend on country, taxes, accessories, etc.
Engine
Displacement636.00 ccm (38.81 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression12.9:1
Bore/Stroke67.0 x 45.1 mm (2.6 x 1.8 inches)
Valves/Cylinder4
FuelingInjection. DFI with four 38mm Keihin throttle bodies and oval sub-throttles
IgnitionTCBI with digital advance
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
Clutch
Driveline520 series X-ring chain
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.03 litres (4.50 gallons)
Emissions
Chassis
Frame TypeAluminum perimeter
Rake23.5°
Trail102 mm (4.0 inches)
Front Suspension41mm inverted Showa SFF-BP fork with top-out springs, stepless compression and rebound damping, adjustable spring preload / 4.7 in.
Front Travel
Rear SuspensionBottom-link Uni-Trak with gas-charged shock, stepless compression and rebound damping adjustments, 25-way adjustable rebound damping, fully adjustable spring preload / 5.3 in.
Rear Travel
Seat
Seat Height831 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,115 mm (43.9 inches)
Total Length2,085 mm (82.1 inches)
Total Width706 mm (27.8 inches)
Ground Clearance
Wheelbase1,394 mm (54.9 inches)
Dry Weight
Wet Weight194.1 kg (427.8 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. ABS. Four-piston calipers. Radially mounted.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. ABS. Single-piston caliper.
Rear Brake Diameter220 mm (8.7 inches)
Wheels
