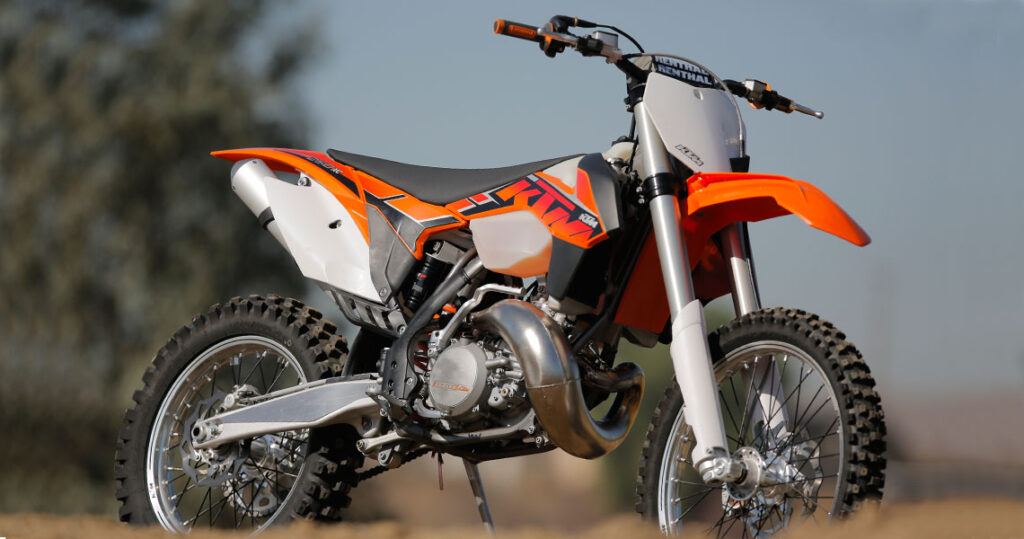

These are the known mechanical and performance specifications for your 2014 KTM 250 XC.
Basic Specs
Engine
Displacement249.00 ccm (15.19 cubic inches)
TypeReed intake.
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke66.4 x 72.0 mm (2.6 x 2.8 inches)
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchMultidisc clutch DDS in oil bath/hydraulically activated
Driveline5/8 x 1/4
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity10.00 litres (2.64 gallons)
Emissions
Chassis
Frame TypeCentral tube frame made of chrome molybdenum steel tubing
Rake26.5°
Trail
Front SuspensionWP Suspension Up Side Down 4860 MXMA CC
Front Travel300 mm (11.8 inches)
Rear SuspensionWP Suspension 5018 BAVP DCC
Rear Travel317 mm (12.5 inches)
Seat
Seat Height992 mm (39.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance395 mm (15.6 inches)
Wheelbase1,495 mm (58.9 inches)
Dry Weight103.9 kg (229.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
