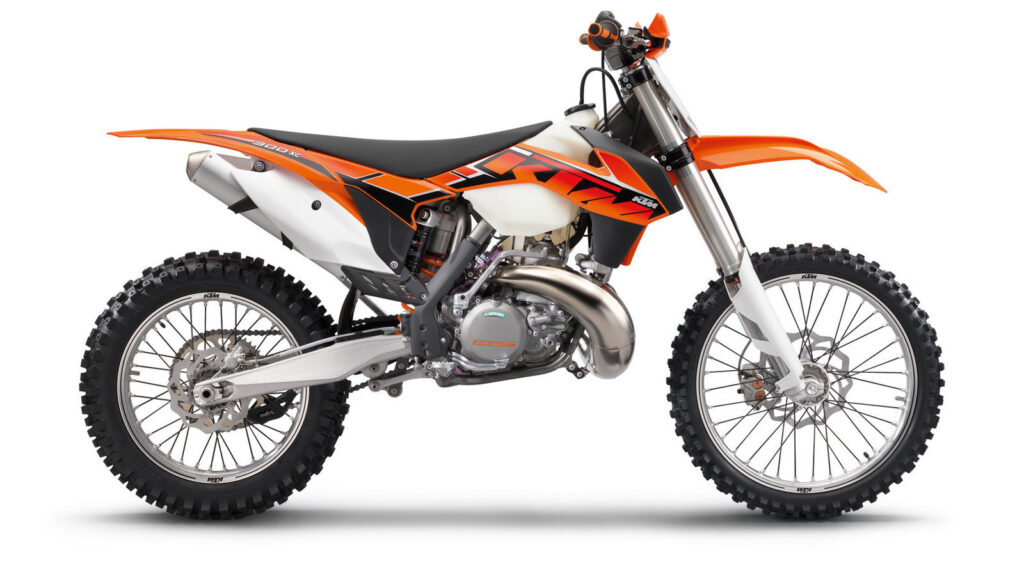

2014 KTM 300 XC Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 KTM 300 XC.

Basic Specs

Year2014
MakeKTM
ModelKTM 300 XC
Cost

Engine

Displacement293.00 ccm (17.88 cubic inches)
TypeReed intake.
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke72.0 x 72.0 mm (2.8 x 2.8 inches)
Valves/Cylinder
FuelingInjection
IgnitionContactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan
Exhaust
LubricationForced oil lubrication with 2 Eaton pumps
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchMultidisc clutch DDS in oil bath/hydraulically activated
Driveline14:50

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.00 litres (2.64 gallons)
Emissions

Chassis

Frame TypeCentral tube frame made of chrome molybdenum steel tubing
Rake26.5°
Trail
Front SuspensionWP  Suspension Up Side Down 4860 MXMA CC
Front Travel300 mm (11.8 inches)
Rear SuspensionWP  Suspension 5018 BAVP DCC
Rear Travel317 mm (12.5 inches)
Seat
Seat Height992 mm (39.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance385 mm (15.2 inches)
Wheelbase1,495 mm (58.9 inches)
Dry Weight103.9 kg (229.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. Brake calipers on floating bearings
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Brake calipers on floating bearings
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the KTM 300 XC. This Enduro / offroad model is powered by a Reed intake. Single cylinder, two-stroke engine with 293.00 ccm (17.88 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 300 XC is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, Central tube frame made of chrome molybdenum steel tubing. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Brake calipers on floating bearings front brakes and Single disc. Brake calipers on floating bearings rear brakes. The KTM 300 XC was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
