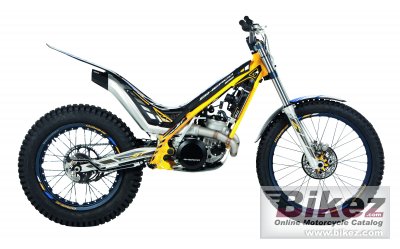

2014 Sherco 305 ST Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Sherco 305 ST.

Basic Specs

Year2014
MakeSherco
ModelSherco 305 ST
TypeTrial
Cost

Engine

Displacement294.00 ccm (17.94 cubic inches)
TypeNikasil coated cylinder
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke79.0 x 60.0 mm (3.1 x 2.4 inches)
Valves/Cylinder
FuelingCarburettor. Keihin Ø 28
IgnitionDigital Hidria with two power curves
ExhaustIntegrated aluminum muffler
LubricationOil pre-mix, 2%
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchMultiplate in oil bath
Driveline5 speed sequential gearbox with security selector system to prevent false shifts. Chain primary drive.

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame TypeTubular section Chrome-moly
Rake
Trail
Front SuspensionTechi 39 mm. dia hydraulic telescope fork.
Front Travel
Rear SuspensionProgressive link system with single R16V adjustable shock absorber,
Rear Travel
Seat
Seat Height645 mm (25.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance305 mm (12.0 inches)
Wheelbase1,322 mm (52.0 inches)
Dry Weight68.0 kg (149.9 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. Hydraulically activated Formula floating disc
Front Brake Diameter185 mm (7.3 inches)
Rear BrakesSingle disc. Hydraulically activated Formula floating disc
Rear Brake Diameter145 mm (5.7 inches)
WheelsMorad 21 inch front and 18 inch rear graphit anodized aluminum rim and aluminum hub, steel spokes with Michelin tube-type tire

Comments

It appears you're interested in specifications for the Sherco 305 ST. This Trial model is powered by a Nikasil coated cylinder Single cylinder, two-stroke engine with 294.00 ccm (17.94 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Keihin Ø 28 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Sherco 305 ST is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, Tubular section Chrome-moly. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulically activated Formula floating disc front brakes and Single disc. Hydraulically activated Formula floating disc rear brakes. The Sherco 305 ST was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
