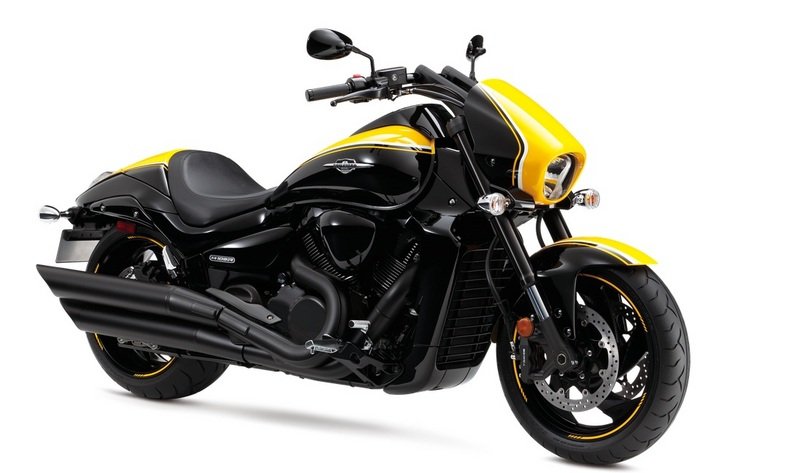

These are the known mechanical and performance specifications for your 2014 Suzuki Boulevard M109R.
Basic Specs


Year2014
MakeSuzuki
ModelSuzuki Boulevard M109R
TypeCustom / cruiser
CostUS$ 14299. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1783.00 ccm (108.80 cubic inches)
Type54-degree V-Twin
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke112.0 x 90.5 mm (4.4 x 3.6 inches)
Valves/Cylinder4
FuelingInjection
IgnitionElectronic ignition (Transistorized)
Exhaust2-into-1-into-2 stainless steel chromed exhaust system
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
DrivelineConstant mesh
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.55 litres (4.90 gallons)
Emissions
Chassis
Frame TypeHigh-tensile double cradle steel frame
Rake
Trail
Front SuspensionInverted telescopic, coil spring, oil damped
Front Travel
Rear SuspensionLink type, oil damped, coil spring
Rear Travel
Seat
Seat Height705 mm (27.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,450 mm (96.5 inches)
Total Width875 mm (34.4 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,710 mm (67.3 inches)
Dry Weight
Wet Weight347.0 kg (765.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/70-R18
Rear Tire/Tyre240/40-R18
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
