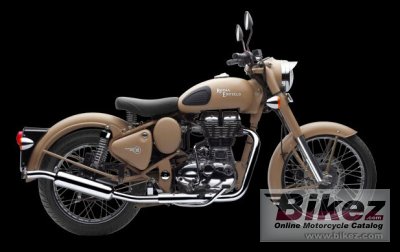

2015 Enfield Classic 500 C5 Military Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Enfield Classic 500 C5 Military.

Basic Specs

Year2015
MakeEnfield
ModelEnfield Classic 500 C5 Military
CostUS$ 5499. Prices depend on country, taxes, accessories, etc.

Engine

Displacement499.00 ccm (30.45 cubic inches)
TypeTwin spark
DetailsSingle cylinder, four-stroke
Max RPM
Compression8.5:1
Bore/Stroke84.0 x 90.0 mm (3.3 x 3.5 inches)
Valves/Cylinder
FuelingInjection. Keihin EFI
IgnitionDigital
Exhaust
LubricationWet sump
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchMulitiplate
DrivelineConstant mesh

Performance

Horespower
Torque41.30 Nm (4.2 kgf-m or 30.5 ft.lbs)
Top Speed120.0 km/h (74.6 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity14.50 litres (3.83 gallons)
Emissions

Chassis

Frame TypeSingle downtube, using engine as stressed member
Rake
Trail
Front SuspensionTelescopic, 35mm forks,
Front Travel130 mm (5.1 inches)
Rear SuspensionTwin gas charged shock absorbers with 5-step adjustable preload
Rear Travel80 mm (3.1 inches)
SeatSingle saddle seat with springs for better comfort
Seat Height
Alt. Seat Height
Total Height1,050 mm (41.3 inches)
Total Length2,160 mm (85.0 inches)
Total Width810 mm (31.9 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1,370 mm (53.9 inches)
Dry Weight
Wet Weight187.0 kg (412.3 pounds)

Wheels & Brakes

Front Tire/Tyre90/90-18
Rear Tire/Tyre110/80-18
Front BrakesSingle disc. 2-Piston caliper
Front Brake Diameter280 mm (11.0 inches)
Rear BrakesExpanding brake (drum brake). Single Lead Internal Expanding
Rear Brake Diameter153 mm (6.0 inches)
WheelsWire spoked

Comments

It appears you're interested in specifications for the Enfield Classic 500 C5 Military. This Classic model is powered by a Twin spark Single cylinder, four-stroke engine with 499.00 ccm (30.45 cubic inches) of actual displacement before 8.5:1 compression. Fueling is metered via Injection. Keihin EFI allowing this machine to produce its horsepower and 41.30 Nm (4.2 kgf-m or 30.5 ft.lbs) torque. According to our records engine heat of the Enfield Classic 500 C5 Military is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-18 and the rear is 110/80-18 . The entire package is supported by the frame, Single downtube, using engine as stressed member. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 2-Piston caliper front brakes and Expanding brake (drum brake). Single Lead Internal Expanding rear brakes. The Enfield Classic 500 C5 Military was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

US version of the Enfield Classic. Brand full name is Royal Enfield. Made in India.
