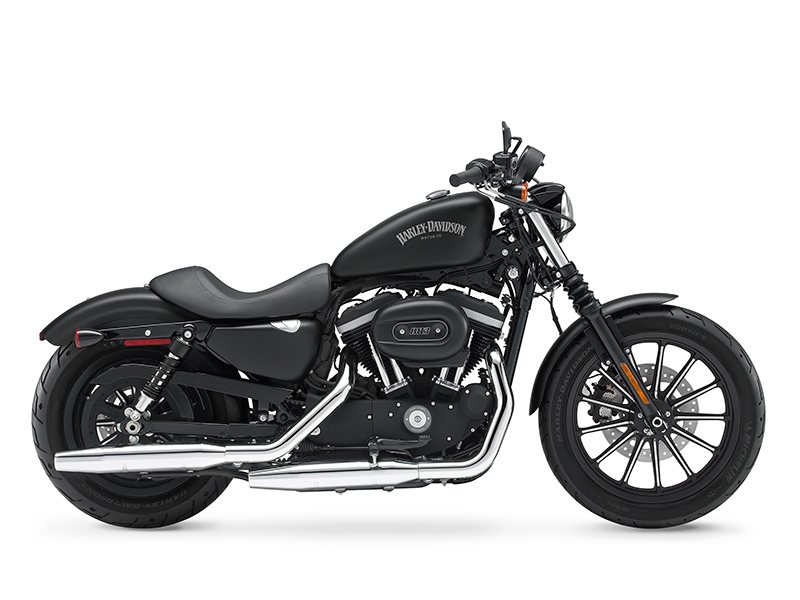

2015 Harley-Davidson Sportster Iron 883 Dark Custom Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Harley-Davidson Sportster Iron 883 Dark Custom.

Basic Specs

Year2015
MakeHarley-Davidson
ModelHarley-Davidson Sportster Iron 883 Dark Custom
CostUS$ 8399. Euro 9635. Prices depend on country, taxes, accessories, etc.

Engine

Displacement883.32 ccm (53.90 cubic inches)
TypeAir-cooled, Evolution®
DetailsV2, four-stroke
Max RPM
Compression8.9:1
Bore/Stroke76.2 x 96.8 mm (3.0 x 3.8 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 57/34 ratio primary drive

Performance

Horespower52.30 HP (38.2 kW)
Torque74.58 Nm (7.6 kgf-m or 55.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.61 litres/100 km (21.7 km/l or 51.02 mpg)
Fuel Capacity12.49 litres (3.30 gallons)
Emissions107.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake30.5°
Trail117 mm (4.6 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height735 mm (28.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,255 mm (88.8 inches)
Total Width
Ground Clearance120 mm (4.7 inches)
Wheelbase1,510 mm (59.4 inches)
Dry Weight251.0 kg (553.3 pounds)
Wet Weight260.0 kg (573.2 pounds)

Wheels & Brakes

Front Tire/Tyre100/90-B19
Rear Tire/Tyre150/80-B16
Front BrakesSingle disc. Optional ABS. Dual-piston.
Front Brake Diameter
Rear BrakesSingle disc. Optional ABS. Dual-piston.
Rear Brake Diameter
WheelsBlack, 13-Spoke Cast Aluminum

Comments

It appears you're interested in specifications for the Harley-Davidson Sportster Iron 883 Dark Custom. This Custom / cruiser model is powered by a Air-cooled, Evolution® V2, four-stroke engine with 883.32 ccm (53.90 cubic inches) of actual displacement before 8.9:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its 52.30 HP (38.2 kW) horsepower and 74.58 Nm (7.6 kgf-m or 55.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Sportster Iron 883 Dark Custom is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 100/90-B19 and the rear is 150/80-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Optional ABS. Dual-piston. front brakes and Single disc. Optional ABS. Dual-piston. rear brakes. The Harley-Davidson Sportster Iron 883 Dark Custom was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
