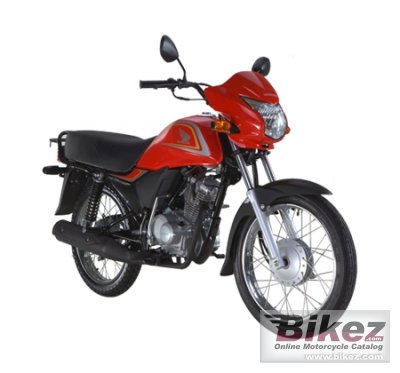

2015 Honda CB125CL Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Honda CB125CL.

Basic Specs

Year2015
MakeHonda
ModelHonda CB125CL
TypeSport
Cost

Engine

Displacement124.80 ccm (7.62 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke52.4 x 57.9 mm (2.1 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionDC-CDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower8.48 HP (6.2 kW)
Torque10.12 Nm (1.0 kgf-m or 7.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.00 litres (2.64 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel118 mm (4.6 inches)
Rear SuspensionSwingarm
Rear Travel70 mm (2.8 inches)
SeatTwo-person seat
Seat Height795 mm (31.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,056 mm (41.6 inches)
Total Length2,050 mm (80.7 inches)
Total Width751 mm (29.6 inches)
Ground Clearance156 mm (6.1 inches)
Wheelbase1,310 mm (51.6 inches)
Dry Weight103.0 kg (227.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre80/100-18
Rear Tire/Tyre90/90-18
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
WheelsWire spoked

Comments

It appears you're interested in specifications for the Honda CB125CL. This Sport model is powered by a Single cylinder, four-stroke engine with 124.80 ccm (7.62 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 8.48 HP (6.2 kW) horsepower and 10.12 Nm (1.0 kgf-m or 7.5 ft.lbs) torque. According to our records engine heat of the Honda CB125CL is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 80/100-18 and the rear is 90/90-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Honda CB125CL was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Sold in some asian countries.
