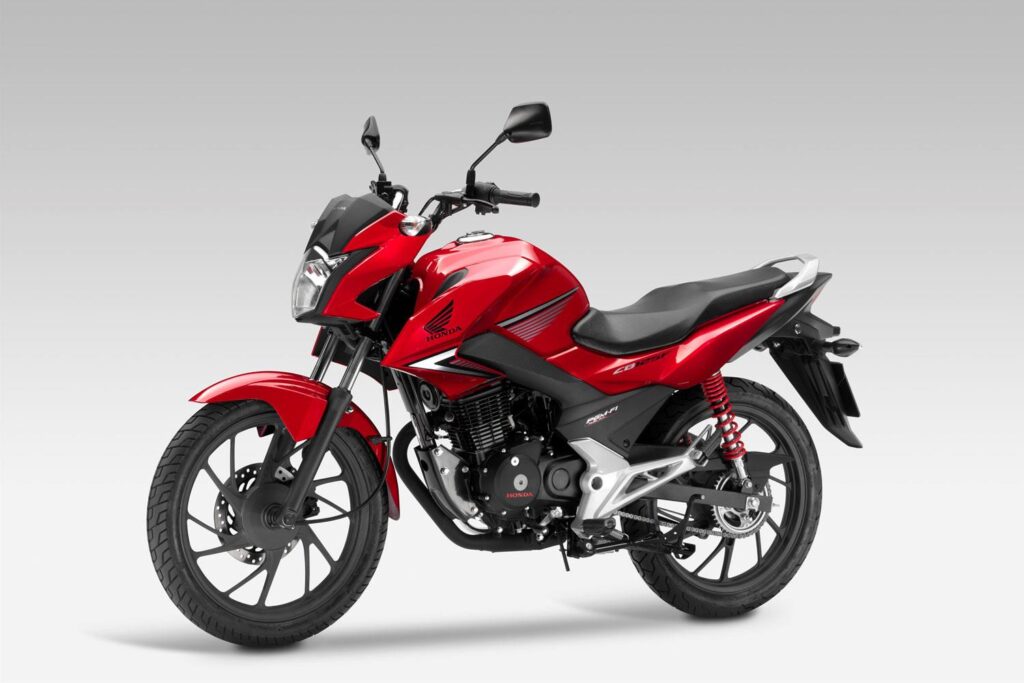

2015 Honda CBF125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Honda CBF125.

Basic Specs

Year2015
MakeHonda
ModelHonda CBF125
TypeSport
Cost

Engine

Displacement124.70 ccm (7.61 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke52.4 x 57.8 mm (2.1 x 2.3 inches)
Valves/Cylinder2
FuelingInjection. PGM-FI
IgnitionComputer controlled fully transistorised with electronic advance
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline2.63

Performance

Horespower11.13 HP (8.1 kW)
Torque11.20 Nm (1.1 kgf-m or 8.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity13.00 litres (3.43 gallons)
Emissions

Chassis

Frame TypeSteel
Rake
Trail
Front Suspension30mm telescopic fork
Front Travel115 mm (4.5 inches)
Rear SuspensionConventional twin shock, double tube damper with 3-step adjustable spring preload
Rear Travel87 mm (3.4 inches)
Seat
Seat Height792 mm (31.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,110 mm (43.7 inches)
Total Length1,955 mm (77.0 inches)
Total Width760 mm (29.9 inches)
Ground Clearance173 mm (6.8 inches)
Wheelbase1,270 mm (50.0 inches)
Dry Weight128.0 kg (282.2 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre80/100-M17
Rear Tire/Tyre100/90-M17
Front BrakesSingle disc. 2-pod calliper and resin mould pads
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
WheelsU-cross-section 6-spoke cast aluminium

Comments

It appears you're interested in specifications for the Honda CBF125. This Sport model is powered by a Single cylinder, four-stroke engine with 124.70 ccm (7.61 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. PGM-FI allowing this machine to produce its 11.13 HP (8.1 kW) horsepower and 11.20 Nm (1.1 kgf-m or 8.3 ft.lbs) torque. According to our records engine heat of the Honda CBF125 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 80/100-M17 and the rear is 100/90-M17 . The entire package is supported by the frame, Steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 2-pod calliper and resin mould pads front brakes and Expanding brake (drum brake) rear brakes. The Honda CBF125 was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
