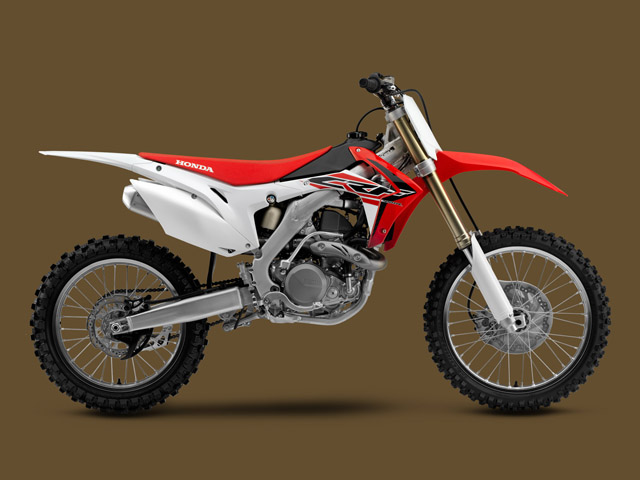

2015 Honda CRF450R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Honda CRF450R.

Basic Specs

Year2015
MakeHonda
ModelHonda CRF450R
TypeCross / motocross
CostUS$ 8699. Prices depend on country, taxes, accessories, etc.
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement449.70 ccm (27.44 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.5:1
Bore/Stroke96.0 x 62.1 mm (3.8 x 2.4 inches)
Valves/Cylinder
FuelingInjection. PGM-Fi
IgnitionFull transister
Exhaust
Lubrication
CoolingLiquid
Spark Plugs

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchMulti plate wet clutch
DrivelineConstant mesh
Chain Clutch Plates

Performance

Horespower51.36 HP (37.5 kW)
Torque47.70 Nm (4.9 kgf-m or 35.2 ft.lbs)
Top Speed170.0 km/h (105.6 mph)
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity6.40 litres (1.69 gallons)
Emissions
Fuel Bottles & Cans

Chassis

Frame TypeAluminium twin tube
Rake27.0°
Trail116 mm (4.6 inches)
Front Suspension48mm inverted KYB PSF (Pneumatic Spring Fork) with air-adjustable spring rate, and rebound and compression-damping adjustability
Front Travel61 mm (2.4 inches)
Rear SuspensionPro-Link® KYB single shock with adjustable spring preload, rebound damping adjustability, and compression damping adjustment separated into low-speed and highspeed
Rear Travel61 mm (2.4 inches)
Seat
Seat Height953 mm (37.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,271 mm (50.0 inches)
Total Length2,191 mm (86.3 inches)
Total Width827 mm (32.6 inches)
Ground Clearance330 mm (13.0 inches)
Wheelbase1,492 mm (58.7 inches)
Dry Weight
Wet Weight111.0 kg (244.7 pounds)
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre80/100-21
Rear Tire/Tyre120/80-19
Front BrakesSingle disc. Hydraulic. Two-piston calipers.
Front Brake Diameter256 mm (10.1 inches)
Rear BrakesSingle disc. Hydraulic. Single-piston caliper.
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the Honda CRF450R. This Cross / motocross model is powered by a Single cylinder, four-stroke engine with 449.70 ccm (27.44 cubic inches) of actual displacement before 12.5:1 compression. Fueling is metered via Injection. PGM-Fi allowing this machine to produce its 51.36 HP (37.5 kW) horsepower and 47.70 Nm (4.9 kgf-m or 35.2 ft.lbs) torque. According to our records engine heat of the Honda CRF450R is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 80/100-21 and the rear is 120/80-19 . The entire package is supported by the frame, Aluminium twin tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulic. Two-piston calipers. front brakes and Single disc. Hydraulic. Single-piston caliper. rear brakes. The Honda CRF450R was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model id: CRF450R
