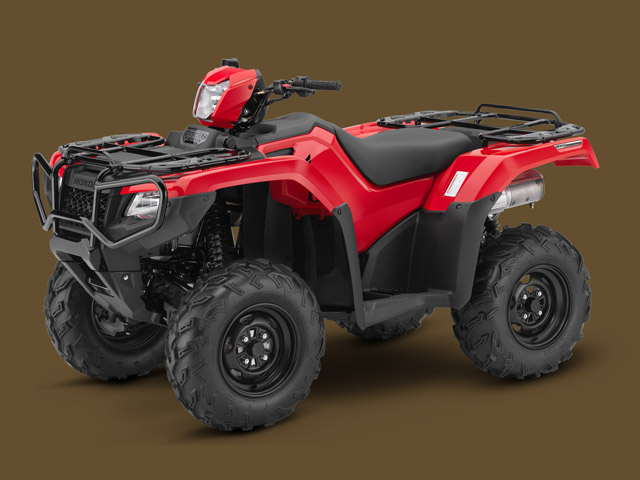

These are the known mechanical and performance specifications for your 2015 Honda FourTrax Foreman Rubicon 4x4.
Basic Specs
Year2015
MakeHonda
ModelHonda FourTrax Foreman Rubicon 4x4
TypeATV
CostUS$ 7799. Prices depend on country, taxes, accessories, etc.
Engine
Displacement499.00 ccm (30.45 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke92.0 x 75.0 mm (3.6 x 3.0 inches)
Valves/Cylinder
FuelingCarburettor. 36mm constant velocity carburetor
IgnitionCD with electronic advance
Exhaust
LubricationDry sump
CoolingLiquid
Drivetrain
GearboxAutomatic
Final DriveShaft drive (cardan)
ClutchAutomatic
DrivelineDirect front and rear driveshafts with TraxLok® and torque-sensitive front differential
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.14 litres (4.00 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionIndependent double-wishbone
Front Travel170 mm (6.7 inches)
Rear SuspensionSwingarm with dual shock absorbers
Rear Travel170 mm (6.7 inches)
Seat
Seat Height861 mm (33.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,179 mm (46.4 inches)
Total Length2,108 mm (83.0 inches)
Total Width1,189 mm (46.8 inches)
Ground Clearance191 mm (7.5 inches)
Wheelbase1,285 mm (50.6 inches)
Dry Weight307.1 kg (677.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre25/8-12
Rear Tire/Tyre25/8-12
Front BrakesSingle disc. 0
Front Brake Diameter180 mm (7.1 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
Model ID: TRX500FM5F. Available with electronic power steering.
