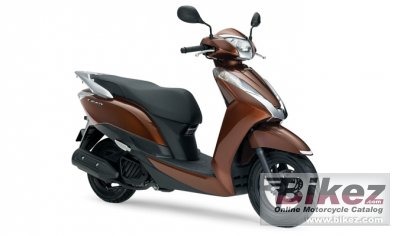

2015 Honda Lead 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Honda Lead 125.

Basic Specs

Year2015
MakeHonda
ModelHonda Lead 125
Cost

Engine

Displacement124.90 ccm (7.62 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke52.4 x 57.9 mm (2.1 x 2.3 inches)
Valves/Cylinder2
FuelingInjection. PGM-FI
IgnitionFully transistorised electronic
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
DrivelineV-matic

Performance

Horespower11.33 HP (8.3 kW)
Torque11.60 Nm (1.2 kgf-m or 8.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity6.00 litres (1.59 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension33mm telescopic fork, 80mm axle travel
Front Travel70 mm (2.8 inches)
Rear SuspensionSingle-damper unit swingarm, 70mm axle travel
Rear Travel80 mm (3.1 inches)
Seat2-person seat
Seat Height760 mm (29.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,120 mm (44.1 inches)
Total Length1,832 mm (72.1 inches)
Total Width680 mm (26.8 inches)
Ground Clearance138 mm (5.4 inches)
Wheelbase1,275 mm (50.2 inches)
Dry Weight113.0 kg (249.1 pounds)
Wet Weight119.0 kg (262.4 pounds)

Wheels & Brakes

Front Tire/Tyre90/90-M12
Rear Tire/Tyre100/90-M10
Front BrakesSingle disc. Combined dual-piston calliper, drilled rotor and resin mould pads
Front Brake Diameter190 mm (7.5 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
WheelsU-section 5-spoke cast aluminium

Comments

It appears you're interested in specifications for the Honda Lead 125. This Scooter model is powered by a Single cylinder, four-stroke engine with 124.90 ccm (7.62 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection. PGM-FI allowing this machine to produce its 11.33 HP (8.3 kW) horsepower and 11.60 Nm (1.2 kgf-m or 8.6 ft.lbs) torque. According to our records engine heat of the Honda Lead 125 is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 90/90-M12 and the rear is 100/90-M10 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Combined dual-piston calliper, drilled rotor and resin mould pads front brakes and Expanding brake (drum brake) rear brakes. The Honda Lead 125 was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
