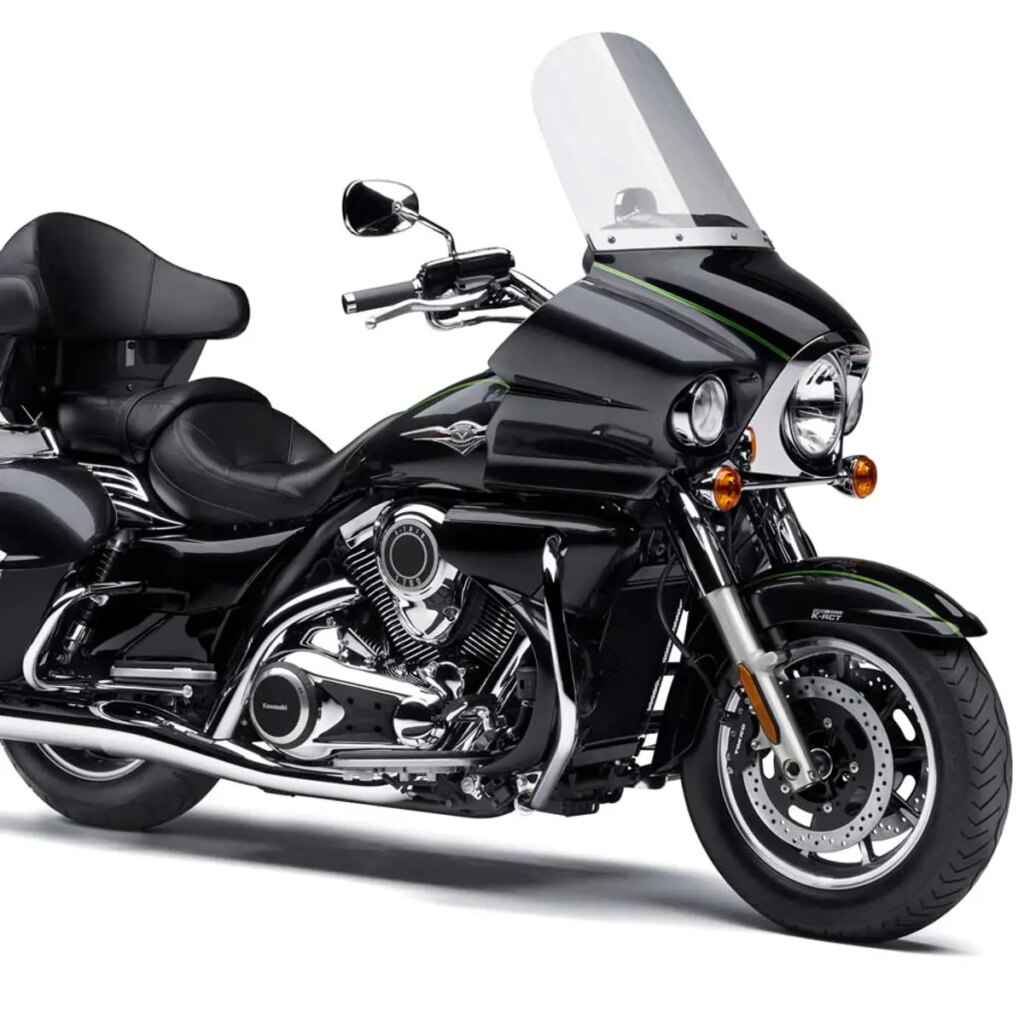

These are the known mechanical and performance specifications for your 2015 Kawasaki VN 1700 Voyager Custom.
Basic Specs
Engine
Displacement1700.00 ccm (103.73 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke102.0 x 104.0 mm (4.0 x 4.1 inches)
Valves/Cylinder4
FuelingInjection
IgnitionDigital
Exhaust
LubricationForced lubrication, semi-dry sump
CoolingLiquid
Performance
Horespower72.42 HP (52.9 kW)
Torque136.00 Nm (13.9 kgf-m or 100.3 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity20.00 litres (5.28 gallons)
Emissions
Chassis
Frame TypeDouble-cradle, steel
Rake30.0°
Trail177 mm (7.0 inches)
Front Suspension45 mm telescopic fork
Front Travel140 mm (5.5 inches)
Rear SuspensionSwingarm with twin air-assisted shocks
Rear Travel80 mm (3.1 inches)
Seat
Seat Height730 mm (28.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,290 mm (50.8 inches)
Total Length2,510 mm (98.8 inches)
Total Width970 mm (38.2 inches)
Ground Clearance145 mm (5.7 inches)
Wheelbase1,665 mm (65.6 inches)
Dry Weight
Wet Weight382.0 kg (842.2 pounds)
Wheels & Brakes
Front Tire/Tyre130/90-B16
Rear Tire/Tyre170/70-B16
Front BrakesDouble disc. Dual 4-piston caliper.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter300 mm (11.8 inches)
Wheels
