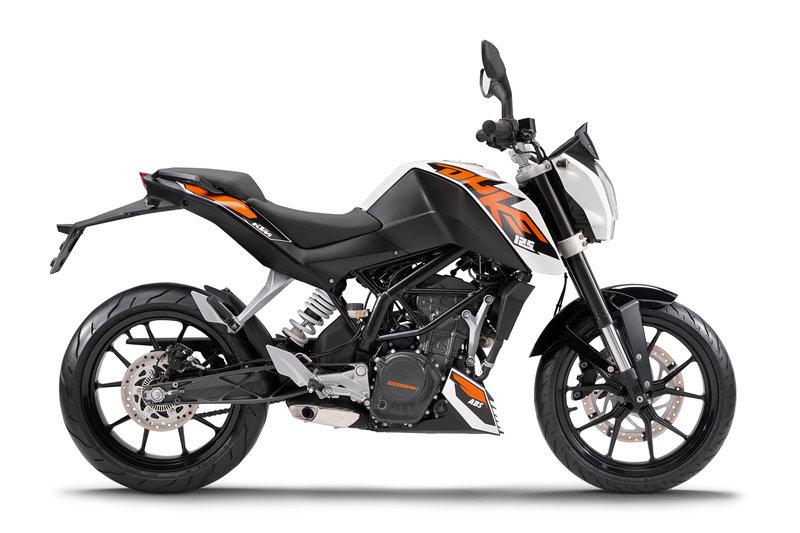

These are the known mechanical and performance specifications for your 2015 KTM 125 Duke.
Basic Specs
Engine
Displacement125.00 ccm (7.63 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke58.0 x 47.2 mm (2.3 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionContactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan
Exhaust
LubricationForced oil lubrication with 2 Eaton pumps
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet multi-disc clutch / hydraulically operated
Driveline5/8 x 1/4 (520) O Ring. Primary drive: 22:72.
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity11.00 litres (2.91 gallons)
Emissions
Chassis
Frame TypeTubular space frame made from steel tubes, powder-coated
Rake25.0°
Trail
Front SuspensionWP Suspension Up Side Down
Front Travel150 mm (5.9 inches)
Rear SuspensionWP Suspension Monoshock
Rear Travel150 mm (5.9 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance170 mm (6.7 inches)
Wheelbase1,361 mm (53.6 inches)
Dry Weight127.0 kg (280.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. ABS. Four-pot brake caliper
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. ABS. One-pot brake caliper, floating brake
Rear Brake Diameter230 mm (9.1 inches)
Wheels
