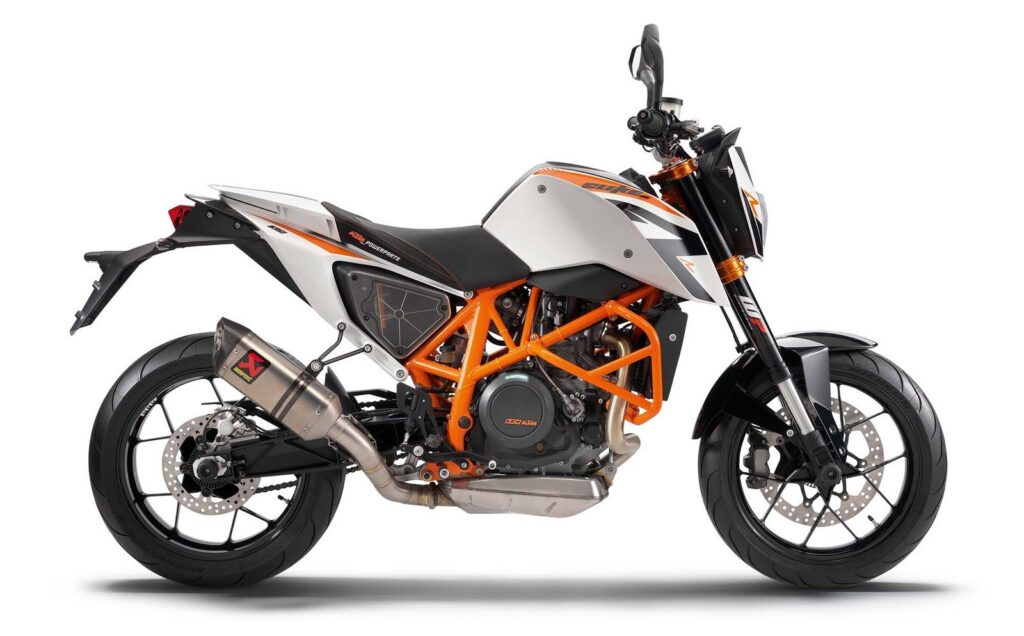

These are the known mechanical and performance specifications for your 2015 KTM 690 Duke ABS.
Basic Specs

Engine
Displacement690.00 ccm (42.10 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke102.0 x 84.5 mm (4.0 x 3.3 inches)
Valves/Cylinder
FuelingInjection
IgnitionContactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Exhaust
LubricationSemi-dry-sump lubrication with 2 rotor pumps
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
Clutch
Driveline5/8 x 1/4 X Ring. Primary drive: 36:79.
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity14.00 litres (3.70 gallons)
Emissions
Chassis
Frame TypeTubular space frame made from chrome molybdenum steel, powder-coated
Rake26.5°
Trail
Front SuspensionWP Suspension Up Side Down
Front Travel135 mm (5.3 inches)
Rear SuspensionWP Suspension with Pro and #8209;Lever linkage
Rear Travel135 mm (5.3 inches)
Seat
Seat Height835 mm (32.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance192 mm (7.6 inches)
Wheelbase1,466 mm (57.7 inches)
Dry Weight149.5 kg (329.6 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. ABS. Floating disc. Four-piston calipers. Radially mounted.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Floating disc. Single-piston caliper.
Rear Brake Diameter240 mm (9.4 inches)
Wheels
Comments
