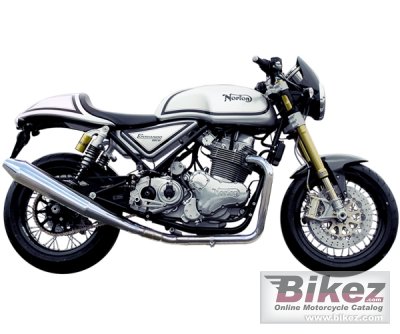

2015 Norton Commando 961 SF Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Norton Commando 961 SF.

Basic Specs

Year2015
MakeNorton
ModelNorton Commando 961 SF
Cost

Engine

Displacement961.00 ccm (58.64 cubic inches)
TypePush-rod valve actuation, 3 bearing crank and balancer shaft.
DetailsTwin, four-stroke
Max RPM
Compression10.1:1
Bore/Stroke88.0 x 79.0 mm (3.5 x 3.1 inches)
Valves/Cylinder2
FuelingInjection. EFI
IgnitionCrank fired electronic
ExhaustBlack chrome front pipes and reverse cone silencers
LubricationDry sump
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet multi-plate hydraulic lifter
DrivelineConstant mesh 5 speed. Final drive: 525 “O” ring chain

Performance

Horespower80.00 HP (58.4 kW)
Torque90.00 Nm (9.2 kgf-m or 66.4 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeSteel tubular with integral oil tank
Rake24.5°
Trail99 mm (3.9 inches)
Front SuspensionOhlins USD
Front Travel115 mm (4.5 inches)
Rear SuspensionOhlins
Rear Travel110 mm (4.3 inches)
SeatOptional dual seat
Seat Height813 mm (32.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,420 mm (55.9 inches)
Dry Weight188.0 kg (414.5 pounds)
Wet Weight203.0 kg (447.5 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre180/55-17
Front BrakesDouble disc. Full Brembo system, twin semi-floating hi carbon stainless steel discs, Brembo 4 piston “Gold Line” axial callipers
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Full Brembo system, 2 piston
Rear Brake Diameter220 mm (8.7 inches)
WheelsBlack Alloy Rims

Comments

It appears you're interested in specifications for the Norton Commando 961 SF. This Classic model is powered by a Push-rod valve actuation, 3 bearing crank and balancer shaft. Twin, four-stroke engine with 961.00 ccm (58.64 cubic inches) of actual displacement before 10.1:1 compression. Fueling is metered via Injection. EFI allowing this machine to produce its 80.00 HP (58.4 kW) horsepower and 90.00 Nm (9.2 kgf-m or 66.4 ft.lbs) torque. According to our records engine heat of the Norton Commando 961 SF is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 180/55-17 . The entire package is supported by the frame, Steel tubular with integral oil tank. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Full Brembo system, twin semi-floating hi carbon stainless steel discs, Brembo 4 piston “Gold Line” axial callipers front brakes and Single disc. Full Brembo system, 2 piston rear brakes. The Norton Commando 961 SF was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Carbon front mud guard, chain guard, rear wheel hugger, rear number plate hugger, headlight mounting, front and rear wheel.
