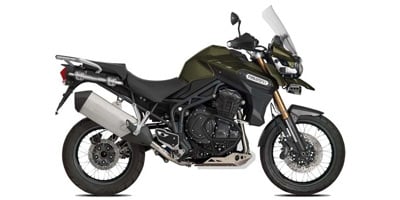

These are the known mechanical and performance specifications for your 2015 Triumph Tiger Explorer XC ABS.
Basic Specs
Year2015
MakeTriumph
ModelTriumph Tiger Explorer XC ABS
TypeAllround
CostUS$ 17499. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1215.00 ccm (74.14 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM
Compression
Bore/Stroke85.0 x 71.4 mm (3.3 x 2.8 inches)
Valves/Cylinder4
FuelingInjection. Drive by wire, fuel injection
Ignition
ExhaustStainless steel 3 into 1 . side mounted stainless steel silencer
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchWet. multi-plate
Driveline
Performance
Horespower137.00 HP (100.0 kW)
Torque121.00 Nm (12.3 kgf-m or 89.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Fuel Capacity20.00 litres (5.28 gallons)
Emissions113.7 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeTubular steel trellis frame
Rake23.9°
Trail106 mm (4.2 inches)
Front SuspensionKayaba 46mm upside down forks
Front Travel190 mm (7.5 inches)
Rear SuspensionKayaba monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment
Rear Travel194 mm (7.6 inches)
Seat
Seat Height837 mm (33.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,410 mm (55.5 inches)
Total Length2,248 mm (88.5 inches)
Total Width885 mm (34.8 inches)
Ground Clearance
Wheelbase1,435 mm (56.5 inches)
Dry Weight235.5 kg (519.2 pounds)
Wet Weight265.5 kg (585.3 pounds)
Wheels & Brakes
Front Tire/Tyre110/80-19
Rear Tire/Tyre150/70-17
Front BrakesDouble disc. Floating discs, Nissin 4-piston calipers, Switchable ABS
Front Brake Diameter305 mm (12.0 inches)
Rear BrakesSingle disc. Nissin 2-piston sliding caliper, Switchable ABS
Rear Brake Diameter190 mm (7.5 inches)
WheelsSpoked, aluminium rims
Comments
Windscreen.
