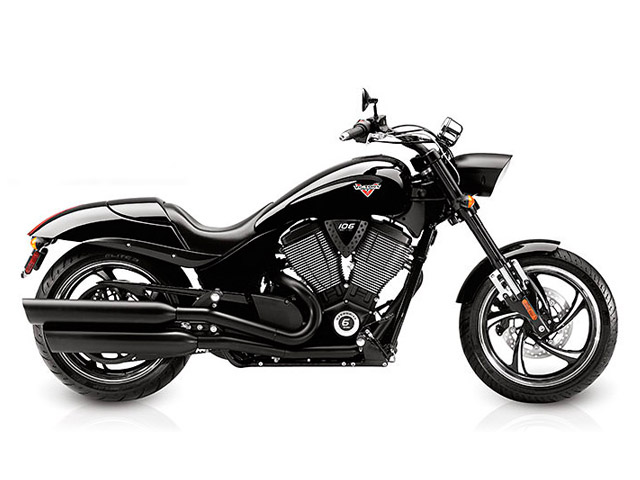

These are the known mechanical and performance specifications for your 2015 Victory Hammer 8-Ball.
Basic Specs
Year2015
MakeVictory
ModelVictory Hammer 8-Ball
TypeCustom / cruiser
CostUS$ 14999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1737.14 ccm (106.00 cubic inches)
Type50° V-Twin. Self-adjusting cam chains, hydraulic lifters.
DetailsV2, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke101.0 x 108.0 mm (4.0 x 4.3 inches)
Valves/Cylinder4
FuelingInjection. Electronic Fuel Injection with dual 45mm throttle body
Ignition
ExhaustStaggered slash-cut dual exhaust with crossover
Lubrication
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchWet, multi-plate
DrivelineCarbon Fiber Reinforced Belt. Primary drive: Gear drive with torque compensator.
Performance
Horespower
Torque149.16 Nm (15.2 kgf-m or 110.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.03 litres (4.50 gallons)
Emissions
Chassis
Frame Type
Rake33.0°
Trail140 mm (5.5 inches)
Front SuspensionInverted cartridge telescopic fork, 43 mm diameter, 5.1 in / 130 mm travel
Front Travel
Rear SuspensionSingle, mono-tube gas, cast aluminum with rising rate linkage, 3.0 in / 76 mm travel, preload adjustable spring
Rear Travel
Seat
Seat Height660 mm (26.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,383 mm (93.8 inches)
Total Width
Ground Clearance135 mm (5.3 inches)
Wheelbase1,689 mm (66.5 inches)
Dry Weight305.0 kg (672.4 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre130/70-R18
Rear Tire/Tyre250/40-R18
Front BrakesSingle disc. Floating discs. Four-piston calipers.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Floating disc. Two-piston calipers.
Rear Brake Diameter300 mm (11.8 inches)
Wheels130/70R18 Dunlop Elite 3
