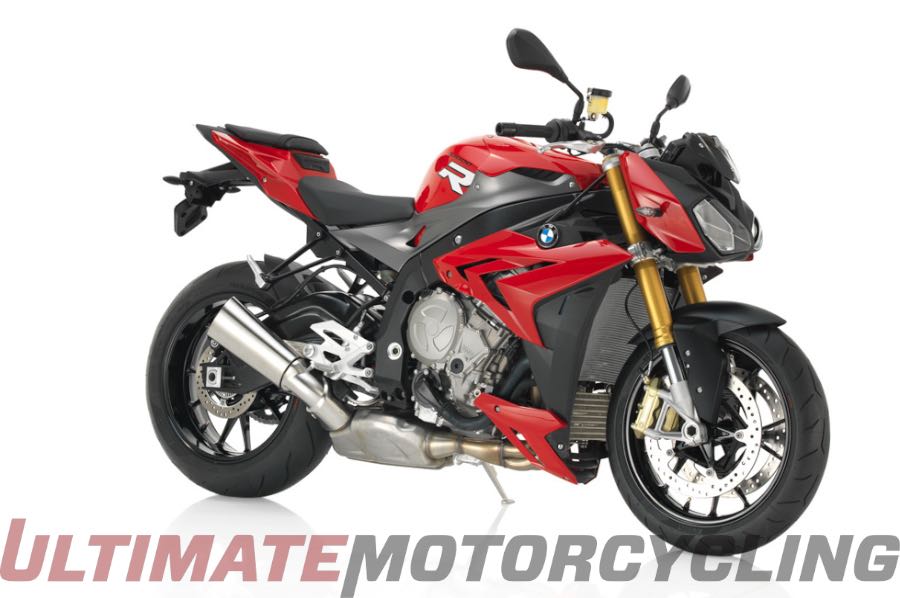

2016 BMW S 1000 R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 BMW S 1000 R.

Basic Specs

Year2016
MakeBMW
ModelBMW S 1000 R
TypeSport
CostUS$ 13495. Prices depend on country, taxes, accessories, etc.

Engine

Displacement999.00 ccm (60.96 cubic inches)
TypeTitanium valves
DetailsIn-line four, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke80.0 x 49.7 mm (3.1 x 2.0 inches)
Valves/Cylinder
FuelingInjection. Electronic intake pipe injection/digital engine management including knock sensor (BMS-K-P)
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet Clutch
DrivelineChain Driveline

Performance

Horespower160.00 HP (116.8 kW)
Torque112.00 Nm (11.4 kgf-m or 82.6 ft.lbs)
Top Speed200.0 km/h (124.3 mph)

Fuel Economy & Polution

Fuel Consumption5.40 litres/100 km (18.5 km/l or 43.56 mpg)
Fuel Capacity17.50 litres (4.62 gallons)
Emissions125.3 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeAluminium composite frame, partially self supporting engine
Rake24.6°
Trail99 mm (3.9 inches)
Front SuspensionUpside down telescopic fork and empty
Front Travel120 mm (4.7 inches)
Rear SuspensionAluminium dual swing arm, adjustable rear suspension
Rear Travel120 mm (4.7 inches)
Seat
Seat Height814 mm (32.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,138 mm (44.8 inches)
Total Length2,057 mm (81.0 inches)
Total Width845 mm (33.3 inches)
Ground Clearance
Wheelbase1,439 mm (56.7 inches)
Dry Weight178.0 kg (392.4 pounds)
Wet Weight207.0 kg (456.4 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc. ABS. Floating discs. Four-piston calipers.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Floating disc. Single-piston caliper.
Rear Brake Diameter220 mm (8.7 inches)
WheelsCast aluminum wheels

Comments

It appears you're interested in specifications for the BMW S 1000 R. This Sport model is powered by a Titanium valves In-line four, four-stroke engine with 999.00 ccm (60.96 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Injection. Electronic intake pipe injection/digital engine management including knock sensor (BMS-K-P) allowing this machine to produce its 160.00 HP (116.8 kW) horsepower and 112.00 Nm (11.4 kgf-m or 82.6 ft.lbs) torque. According to our records engine heat of the BMW S 1000 R is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/55-ZR17 . The entire package is supported by the frame, Aluminium composite frame, partially self supporting engine. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Floating discs. Four-piston calipers. front brakes and Single disc. ABS. Floating disc. Single-piston caliper. rear brakes. The BMW S 1000 R was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Switchable ABS.
