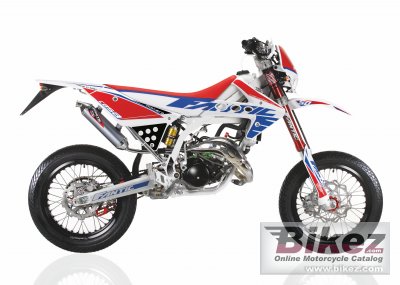

These are the known mechanical and performance specifications for your 2016 Fantic Caballero 50M Casa.
Basic Specs
Engine
Displacement48.90 ccm (2.98 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke40.3 x 39.0 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor. DellOrto
IgnitionElectronic, variable
ExhaustChrome exhaust and anodized aluminium silencer by BigOne
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.50 litres (1.98 gallons)
Emissions
Chassis
Frame TypePerimeter steel CrMo. Subframe: Removable in steel. Swing arm: Steel, progressive link.
Rake
Trail
Front SuspensionFantic FRS ø41mm upside down
Front Travel
Rear SuspensionFantic RS 50 Piggyback - 1 regulation
Rear Travel
Seat
Seat Height860 mm (33.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,040 mm (80.3 inches)
Total Width
Ground Clearance
Wheelbase13,985 mm (550.6 inches)
Dry Weight84.0 kg (185.2 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre100/80-17
Rear Tire/Tyre130/70-17
Front BrakesSingle disc. Wave disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Wave disc
Rear Brake Diameter220 mm (8.7 inches)
WheelsAluminium, anodized black, wire spoked
Comments
Italian brand. Bike also called Fantic 50 Motard Casa
