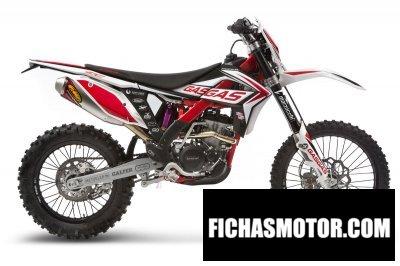

These are the known mechanical and performance specifications for your 2016 GAS GAS EC 300F.
Basic Specs
Engine
Displacement290.00 ccm (17.70 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke83.0 x 53.6 mm (3.3 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. Keihin fcr-mx37
IgnitionElectronic
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveChain
ClutchMultidisc in oil bath
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity6.30 litres (1.66 gallons)
Emissions
Chassis
Frame TypeChrom-Molybdenum frame with B-profil
Rake
Trail
Front SuspensionMarzocchi shiver inverted ø48 mm, closed cartridge
Front Travel305 mm (12.0 inches)
Rear SuspensionAluminium swingarm. Reiger Mono shock. Spring preload, rebound and compression high/low speed.
Rear Travel298 mm (11.7 inches)
Seat
Seat Height950 mm (37.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,260 mm (49.6 inches)
Total Length2,200 mm (86.6 inches)
Total Width830 mm (32.7 inches)
Ground Clearance
Wheelbase1,490 mm (58.7 inches)
Dry Weight108.0 kg (238.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre140/80-18
Front BrakesSingle disc. Two-piston calipers.
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Single-piston caliper.
Rear Brake Diameter220 mm (8.7 inches)
WheelsExcel Aluminium spoke rim
Comments
Spanish bike. Model also called Gas Gas EC 300F Racing.
