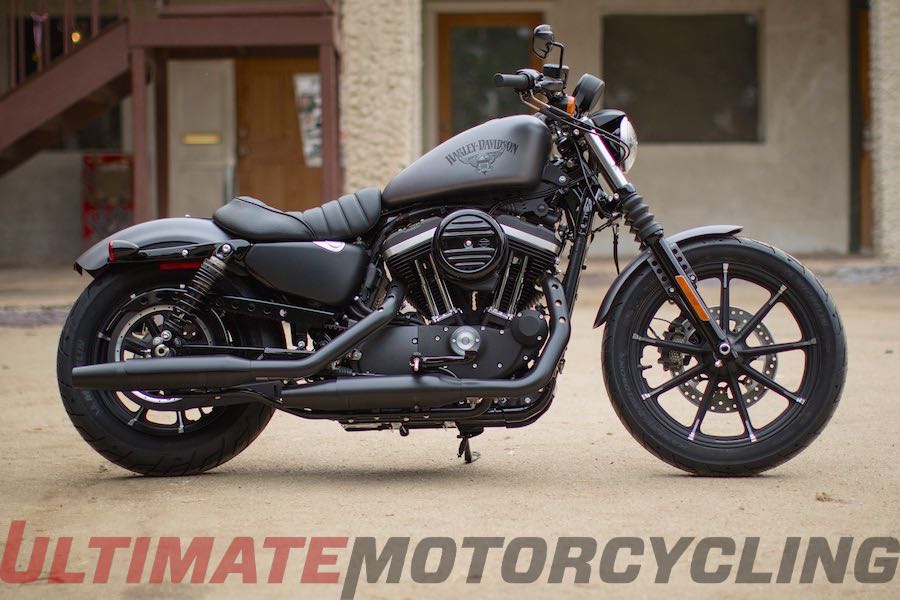

These are the known mechanical and performance specifications for your 2016 Harley-Davidson Sportster Iron 883 Dark Custom.
Basic Specs

Year2016
MakeHarley-Davidson
ModelHarley-Davidson Sportster Iron 883 Dark Custom
TypeCustom / cruiser
Cost Euro 10125. Prices depend on country, taxes, accessories, etc.
Engine
Displacement883.32 ccm (53.90 cubic inches)
TypeEvolution® engine
DetailsV2, four-stroke
Max RPM
Compression8.9:1
Bore/Stroke76.2 x 96.8 mm (3.0 x 3.8 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 57/34 ratio primary drive
Performance
Horespower53.00 HP (38.7 kW)
Torque71.00 Nm (7.2 kgf-m or 52.4 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption4.61 litres/100 km (21.7 km/l or 51.02 mpg)
Fuel Capacity12.49 litres (3.30 gallons)
Emissions107.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake30.5°
Trail117 mm (4.6 inches)
Front SuspensionTelescopic cartridge fork
Front Travel
Rear SuspensionTwin shocks, adjustable.
Rear Travel
SeatSolo seat
Seat Height735 mm (28.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,255 mm (88.8 inches)
Total Width
Ground Clearance120 mm (4.7 inches)
Wheelbase1,510 mm (59.4 inches)
Dry Weight251.0 kg (553.3 pounds)
Wet Weight260.0 kg (573.2 pounds)
Wheels & Brakes
Front Tire/Tyre100/90-B19
Rear Tire/Tyre150/80-B16
Front BrakesSingle disc. Optional ABS. Dual-piston.
Front Brake Diameter
Rear BrakesSingle disc. Optional ABS. Dual-piston.
Rear Brake Diameter
WheelsBlack, 13-Spoke Cast Aluminum
