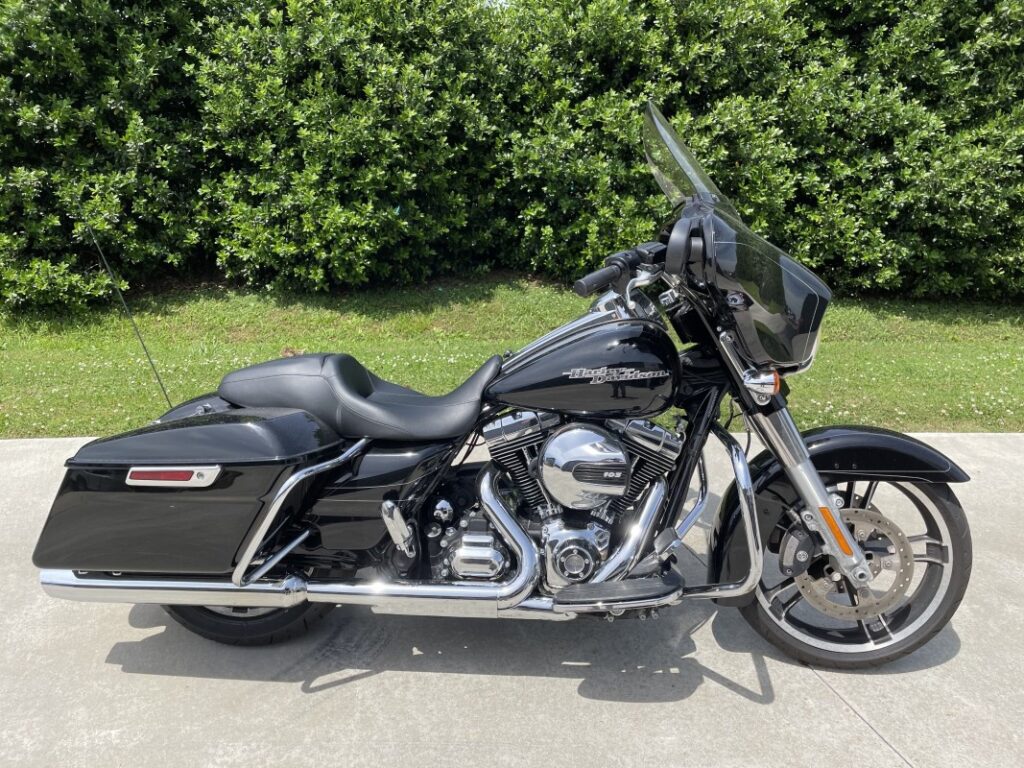

These are the known mechanical and performance specifications for your 2016 Harley-Davidson Street Glide Special.
Basic Specs
Year2016
MakeHarley-Davidson
ModelHarley-Davidson Street Glide Special
TypeTouring
CostUS$ 23199. Euro 26045. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1687.97 ccm (103.00 cubic inches)
TypeIntegrated Oil-Cooler
DetailsV2, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. ESPFI
Ignition
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers
LubricationDry sump
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio
Performance
Horespower87.00 HP (63.5 kW)
Torque138.00 Nm (14.1 kgf-m or 101.8 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity22.70 litres (6.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake26.0°
Trail173 mm (6.8 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height695 mm (27.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,451 mm (96.5 inches)
Total Width
Ground Clearance135 mm (5.3 inches)
Wheelbase1,625 mm (64.0 inches)
Dry Weight356.0 kg (784.8 pounds)
Wet Weight372.0 kg (820.1 pounds)
Wheels & Brakes
Front Tire/Tyre130/70-BW18
Rear Tire/Tyre180/65-BW16
Front BrakesDouble disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS. 4-piston
Rear Brake Diameter
WheelsEnforcer Cast Aluminum
Comments
Windshield. Cruise control. Alarm.
