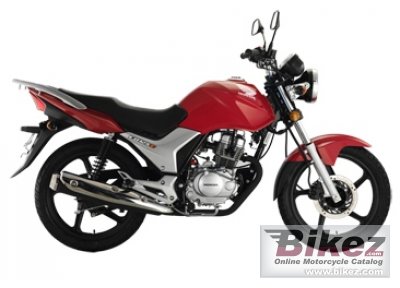

2016 Honda CB125E Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Honda CB125E.

Basic Specs

Year2016
MakeHonda
ModelHonda CB125E
Cost

Engine

Displacement124.10 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke56.5 x 49.5 mm (2.2 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor. 24mm Constant Velocity
IgnitionAC-CDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.00 litres (2.64 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel118 mm (4.6 inches)
Rear SuspensionSwingarm
Rear Travel70 mm (2.8 inches)
SeatTwo-person seat
Seat Height767 mm (30.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,094 mm (43.1 inches)
Total Length2,026 mm (79.8 inches)
Total Width765 mm (30.1 inches)
Ground Clearance145 mm (5.7 inches)
Wheelbase1,286 mm (50.6 inches)
Dry Weight
Wet Weight137.0 kg (302.0 pounds)

Wheels & Brakes

Front Tire/Tyre80/100-18
Rear Tire/Tyre90/90-18
Front BrakesSingle disc. Dual piston
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
WheelsSpoke cast aluminium

Comments

It appears you're interested in specifications for the Honda CB125E. This Naked bike model is powered by a Single cylinder, four-stroke engine with 124.10 ccm (7.57 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. 24mm Constant Velocity allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda CB125E is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 80/100-18 and the rear is 90/90-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Dual piston front brakes and Expanding brake (drum brake) rear brakes. The Honda CB125E was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
