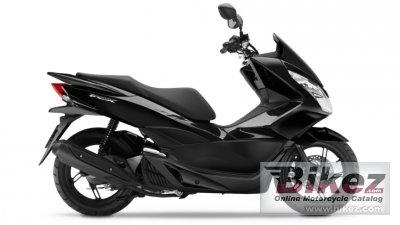

These are the known mechanical and performance specifications for your 2016 Honda PCX 125.
Basic Specs
Year2016
MakeHonda
ModelHonda PCX 125
TypeScooter
Cost Euro 3075. Prices depend on country, taxes, accessories, etc.
Engine
Displacement124.90 ccm (7.62 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke52.4 x 57.9 mm (2.1 x 2.3 inches)
Valves/Cylinder2
FuelingInjection. PGM-FI with automatic enrichment
IgnitionDigital with electronic advance
Exhaust
Lubrication
CoolingLiquid
Performance
Horespower11.17 HP (8.2 kW)
Torque11.56 Nm (1.2 kgf-m or 8.5 ft.lbs)
Top Speed94.0 km/h (58.4 mph)
Fuel Economy & Polution
Fuel Consumption1.76 litres/100 km (56.8 km/l or 133.65 mpg)
Fuel Capacity7.00 litres (1.85 gallons)
Emissions40.8 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake27.0°
Trail86 mm (3.4 inches)
Front Suspension31mm hydraulic fork
Front Travel100 mm (3.9 inches)
Rear SuspensionTwin suspension aluminium swingarm
Rear Travel75 mm (3.0 inches)
Seat
Seat Height761 mm (30.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,094 mm (43.1 inches)
Total Length1,917 mm (75.5 inches)
Total Width
Ground Clearance135 mm (5.3 inches)
Wheelbase1,306 mm (51.4 inches)
Dry Weight
Wet Weight130.0 kg (286.6 pounds)
Wheels & Brakes
Front Tire/Tyre90/90-14
Rear Tire/Tyre100/90-14
Front BrakesSingle disc. CBS, 3-piston caliper
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels5-spoke cast aluminium
Comments
Model ID: PCX125
