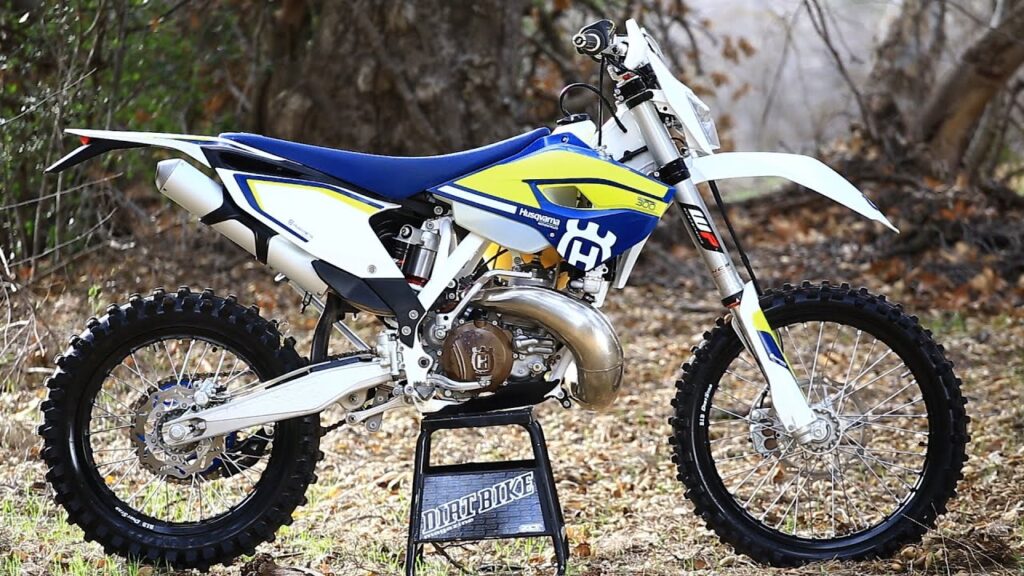

These are the known mechanical and performance specifications for your 2016 Husqvarna TE 300.
Basic Specs
Engine
Displacement293.00 ccm (17.88 cubic inches)
TypeReed valves
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke72.0 x 72.0 mm (2.8 x 2.8 inches)
Valves/Cylinder
FuelingInjection
Ignition
Exhaust
LubricationMixture oil lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet, DDS multi-disc clutch, Brembo hydraulics
DrivelineConstant mesh
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity11.00 litres (2.91 gallons)
Emissions
Chassis
Frame Type25CrMo4 steel central-tube
Rake26.5°
Trail106 mm (4.2 inches)
Front SuspensionWP USD Ø 48 mm 4CS closed cartridge
Front Travel300 mm (11.8 inches)
Rear SuspensionWP shock absorber with linkage
Rear Travel330 mm (13.0 inches)
Seat
Seat Height960 mm (37.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance355 mm (14.0 inches)
Wheelbase1,482 mm (58.3 inches)
Dry Weight104.6 kg (230.6 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre140/90-18
Front BrakesSingle disc. Four-pot brake caliper
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. One-pot brake caliper, floating
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
