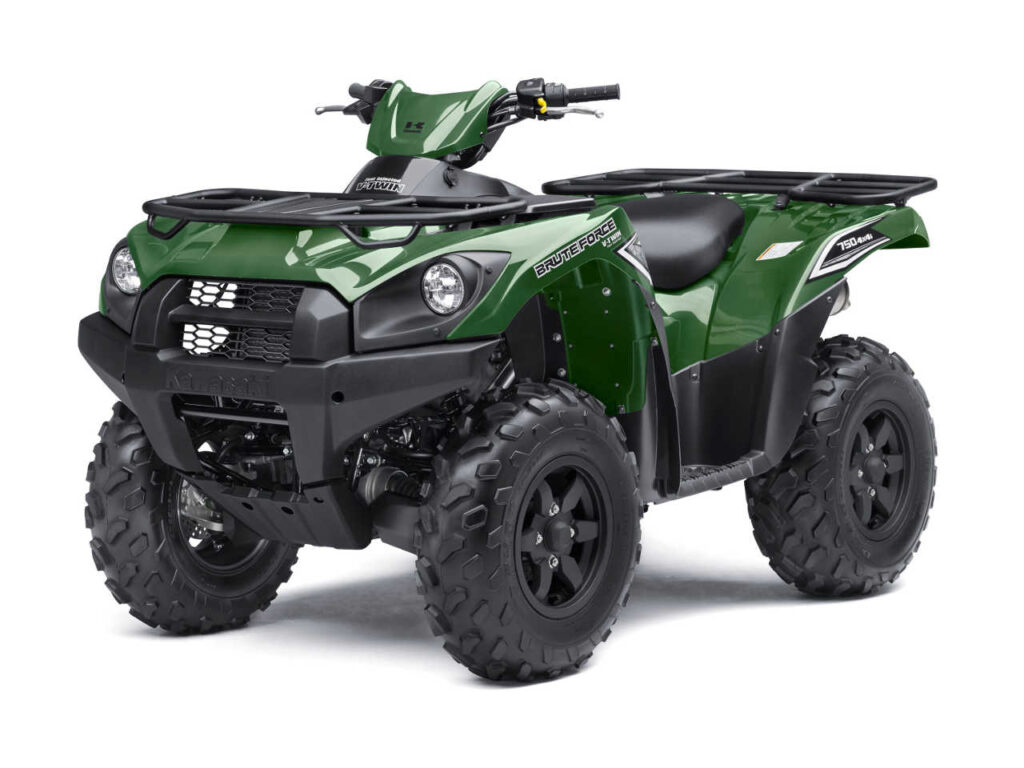

2016 Kawasaki Brute Force 750 4x4i Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Kawasaki Brute Force 750 4x4i.

Basic Specs

Year2016
MakeKawasaki
ModelKawasaki Brute Force 750 4x4i
TypeATV
CostUS$ 8999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement749.00 ccm (45.70 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.3:1
Bore/Stroke85.0 x 66.0 mm (3.3 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. DFI with 2 x 36mm Mikuni throttle bodies
IgnitionTCBI with digital advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveShaft drive (cardan)
Clutch
DrivelineSelectable four-wheel drive with Variable Front Differential Control, shaft

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.93 litres (5.00 gallons)
Emissions

Chassis

Frame TypeDouble-cradle, high-tensile tubular steel
Rake
Trail
Front SuspensionDouble Wishbone
Front Travel170 mm (6.7 inches)
Rear SuspensionFully independent, dual A-arm
Rear Travel191 mm (7.5 inches)
Seat
Seat Height909 mm (35.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,195 mm (86.4 inches)
Total Width1,181 mm (46.5 inches)
Ground Clearance239 mm (9.4 inches)
Wheelbase1,285 mm (50.6 inches)
Dry Weight
Wet Weight310.1 kg (683.6 pounds)

Wheels & Brakes

Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesDouble disc. Hydraulic. Two-piston calipers.
Front Brake Diameter200 mm (7.9 inches)
Rear BrakesSealed multidisc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Brute Force 750 4x4i. This ATV model is powered by a V2, four-stroke engine with 749.00 ccm (45.70 cubic inches) of actual displacement before 9.3:1 compression. Fueling is metered via Injection. DFI with 2 x 36mm Mikuni throttle bodies allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki Brute Force 750 4x4i is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 25/8-12 and the rear is 25/10-12 . The entire package is supported by the frame, Double-cradle, high-tensile tubular steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Hydraulic. Two-piston calipers. front brakes and Sealed multidisc rear brakes. The Kawasaki Brute Force 750 4x4i was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
