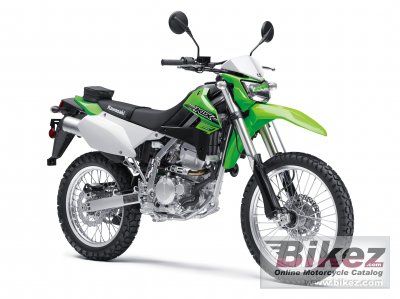

These are the known mechanical and performance specifications for your 2016 Kawasaki KLX250S.
Basic Specs
Engine
Displacement249.00 ccm (15.19 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke72.0 x 61.2 mm (2.8 x 2.4 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin CVK34
IgnitionDigital CDI
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.57 litres (2.00 gallons)
Emissions
Chassis
Frame TypeSemi-double cradle, high-tensile steel
Rake26.5°
Trail105 mm (4.1 inches)
Front SuspensionInverted Cartridge Fork with 16-Way Compression Damping Adjustment
Front Travel
Rear SuspensionUni-Trak with Adjustable Preload, 16-Way Compression and Rebound Damping Adjustment
Rear Travel
Seat
Seat Height889 mm (35.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,204 mm (47.4 inches)
Total Length2,200 mm (86.6 inches)
Total Width820 mm (32.3 inches)
Ground Clearance284 mm (11.2 inches)
Wheelbase1,430 mm (56.3 inches)
Dry Weight
Wet Weight134.0 kg (295.4 pounds)
Wheels & Brakes
Front Tire/Tyre80/100-21
Rear Tire/Tyre100/100-18
Front BrakesSingle disc. Petal disc
Front Brake Diameter250 mm (9.8 inches)
Rear BrakesSingle disc. Petal disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels
