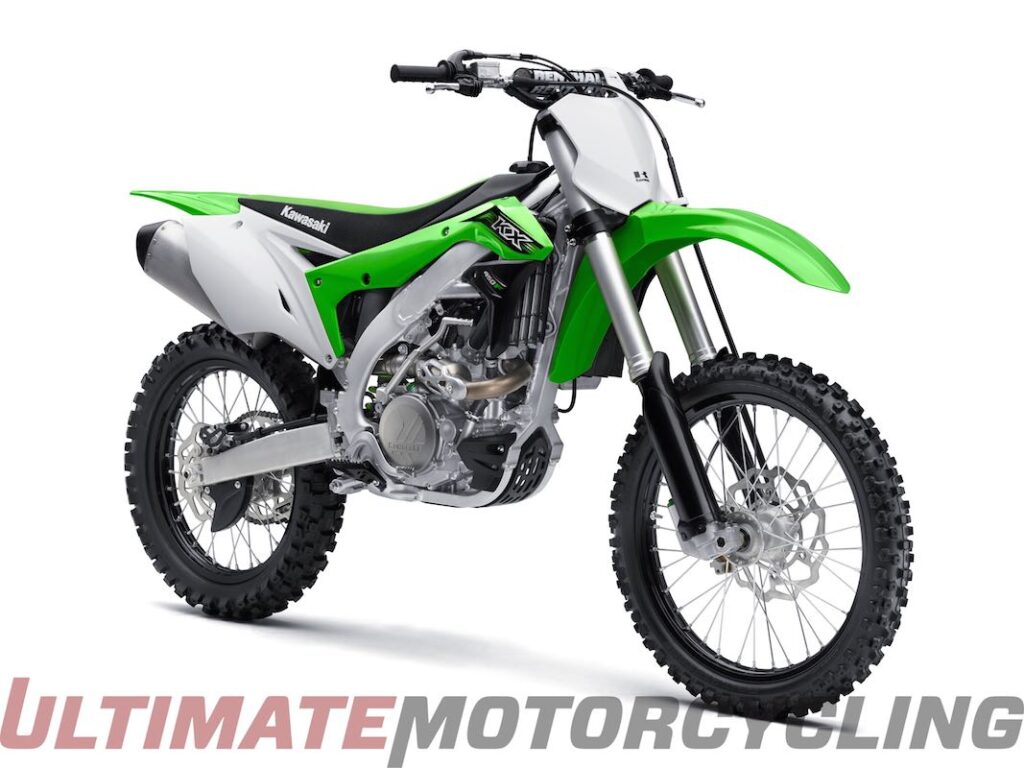

These are the known mechanical and performance specifications for your 2016 Kawasaki KX 450F.
Basic Specs
Engine
Displacement449.00 ccm (27.40 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.5:1
Bore/Stroke96.0 x 62.1 mm (3.8 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. DFI with 43mm Keihin throttle body
IgnitionDigital DC-CDI
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity6.21 litres (1.64 gallons)
Emissions
Chassis
Frame TypeAluminum perimeter
Rake26.9°
Trail
Front Suspension48mm inverted, Kayaba PSF with DLC coated sliders, 22-position compression and 20-position rebound dampening adjustment
Front Travel315 mm (12.4 inches)
Rear SuspensionUNI-TRAK linkage system and Kayaba shock with 50mm piston, 22-position low-speed and stepless high-speed compression dampening, 33-position rebound dampening and fully adjustable spring preload
Rear Travel315 mm (12.4 inches)
Seat
Seat Height955 mm (37.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,275 mm (50.2 inches)
Total Length2,179 mm (85.8 inches)
Total Width820 mm (32.3 inches)
Ground Clearance330 mm (13.0 inches)
Wheelbase1,481 mm (58.3 inches)
Dry Weight
Wet Weight108.7 kg (239.6 pounds)
Wheels & Brakes
Front Tire/Tyre80/100-21
Rear Tire/Tyre120/80-19
Front BrakesSingle disc. Petal disc with 2-piston caliper
Front Brake Diameter250 mm (9.8 inches)
Rear BrakesSingle disc. Petal disc with single-piston caliper
Rear Brake Diameter240 mm (9.4 inches)
Wheels
