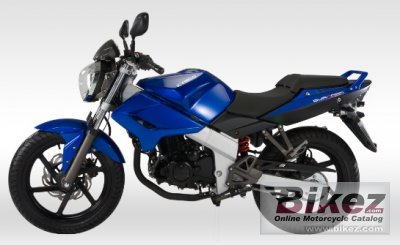

These are the known mechanical and performance specifications for your 2016 Kymco Quannon Naked 125.
Basic Specs
Engine
Displacement124.10 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke56.5 x 49.5 mm (2.2 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingOil & air
Performance
Horespower13.00 HP (9.5 kW)
Torque9.80 Nm (1.0 kgf-m or 7.2 ft.lbs)
Top Speed104.6 km/h (65.0 mph)
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity13.50 litres (3.57 gallons)
Emissions
Chassis
Frame TypeDouble cradle
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionSingle swing
Rear Travel
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,161 mm (45.7 inches)
Total Length2,057 mm (81.0 inches)
Total Width783 mm (30.8 inches)
Ground Clearance208 mm (8.2 inches)
Wheelbase1,355 mm (53.3 inches)
Dry Weight132.0 kg (291.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre110/80-17
Rear Tire/Tyre140/70-17
Front BrakesSingle disc
Front Brake Diameter276 mm (10.9 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
Kymco bikes are made by Kwang Yang Motor Company, Taiwan.
