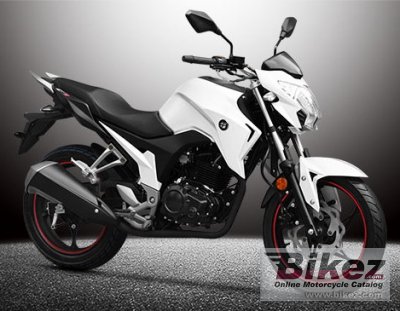

2016 Loncin CR5 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Loncin CR5.

Basic Specs

Year2016
MakeLoncin
ModelLoncin CR5
Cost

Engine

Displacement180.08 ccm (10.99 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke63.0 x 58.0 mm (2.5 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionC.D.I
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower14.10 HP (10.3 kW)
Torque13.50 Nm (1.4 kgf-m or 10.0 ft.lbs)
Top Speed105.0 km/h (65.2 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.00 litres (3.17 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionSingle Shock
Rear Travel
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,335 mm (52.6 inches)
Dry Weight125.0 kg (275.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/80-17
Rear Tire/Tyre130/70-17
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Loncin CR5. This Naked bike model is powered by a Single cylinder, four-stroke engine with 180.08 ccm (10.99 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 14.10 HP (10.3 kW) horsepower and 13.50 Nm (1.4 kgf-m or 10.0 ft.lbs) torque. According to our records engine heat of the Loncin CR5 is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/80-17 and the rear is 130/70-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Loncin CR5 was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Chinese brand.
