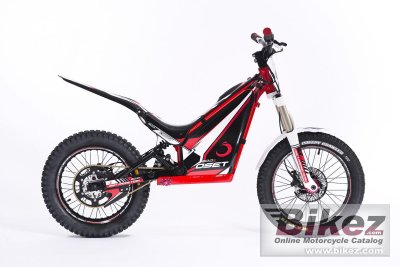

These are the known mechanical and performance specifications for your 2016 Oset 20 48V Racing.
Basic Specs
Year2016
MakeOset
ModelOset 20 48V Racing
TypeMinibike, cross
CostUS$ 1999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement
TypeOset neodymium magnet DC motor
DetailsElectric
Max RPM
Compression
Bore/Stroke
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
CoolingAir
Chassis
Frame TypeSteel
Rake
Trail
Front SuspensionTelescopic air fork
Front Travel
Rear SuspensionMonoshock with preload adjustment, oil dampened.
Rear Travel
Seat
Seat Height550 mm (21.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance290 mm (11.4 inches)
Wheelbase1,050 mm (41.3 inches)
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre2.50-16
Rear Tire/Tyre2.70-16
Front BrakesSingle disc
Front Brake Diameter160 mm (6.3 inches)
Rear BrakesSingle disc
Rear Brake Diameter140 mm (5.5 inches)
WheelsAlloy rims/hubs, wire spoked.
Comments
4 x 10ah AGM SLA batteries. Intended for children 8 years or older.
