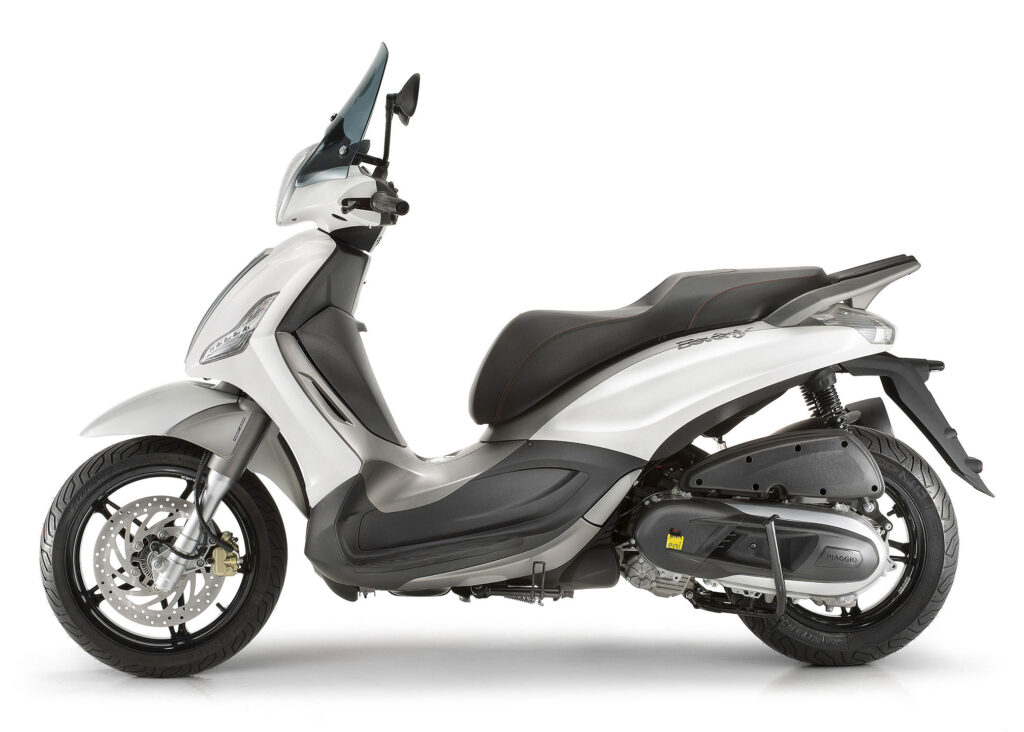

These are the known mechanical and performance specifications for your 2016 Piaggio BV 350 ABS.
Basic Specs
Year2016
MakePiaggio
ModelPiaggio BV 350 ABS
TypeScooter
CostUS$ 6199. Prices depend on country, taxes, accessories, etc.
Engine
Displacement330.00 ccm (20.14 cubic inches)
TypeQuasar engine
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke78.0 x 69.0 mm (3.1 x 2.7 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
LubricationDry sump
CoolingLiquid
Drivetrain
GearboxAutomatic
Final DriveBelt
ClutchMulti-disc centrifuge in oil bath
DrivelineCVT with torque server
Performance
Horespower32.80 HP (23.9 kW)
Torque32.30 Nm (3.3 kgf-m or 23.8 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity13.00 litres (3.43 gallons)
Emissions
Chassis
Frame TypeTwin cradle tubes in high tensile steel
Rake
Trail
Front SuspensionTelescopic hydraulic fork with 35-mm stanchions
Front Travel
Rear SuspensionDouble shock absorbers
Rear Travel
Seat
Seat Height787 mm (31.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,320 mm (52.0 inches)
Total Length2,115 mm (83.3 inches)
Total Width760 mm (29.9 inches)
Ground Clearance
Wheelbase1,560 mm (61.4 inches)
Dry Weight176.9 kg (390.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre110/70-16
Rear Tire/Tyre150/70-14
Front BrakesSingle disc. ABS. Three piston floating calliper
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. ABS. Dual piston floating calliper
Rear Brake Diameter260 mm (10.2 inches)
WheelsAluminium alloy
Comments
Windshield
