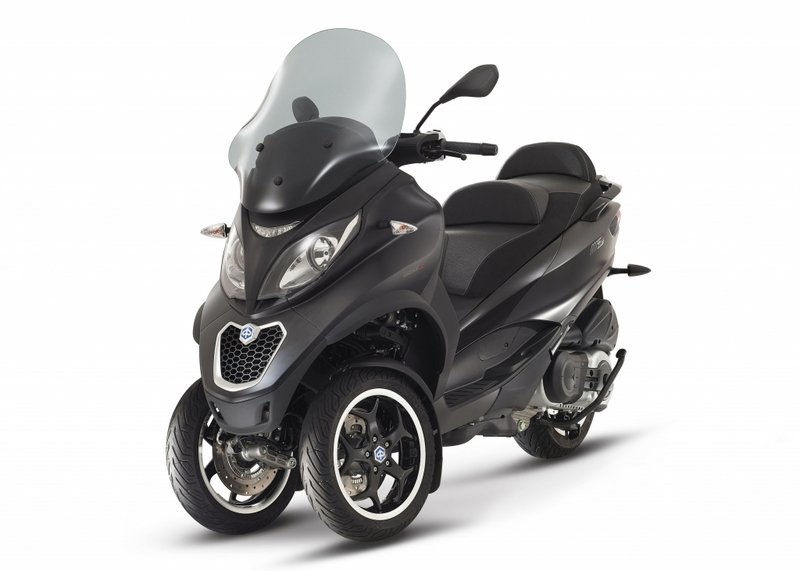

These are the known mechanical and performance specifications for your 2016 Piaggio MP3 500 Sport.
Basic Specs
Year2016
MakePiaggio
ModelPiaggio MP3 500 Sport
TypeScooter
CostUS$ 8999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement493.00 ccm (30.08 cubic inches)
TypePiaggio Master engine
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke94.0 x 71.0 mm (3.7 x 2.8 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
LubricationWet sump
CoolingLiquid
Drivetrain
GearboxAutomatic
Final DriveBelt
ClutchAutomatic dry centrifugal
DrivelineTwist-and-go CVT with torque server
Performance
Horespower40.10 HP (29.3 kW)
Torque45.50 Nm (4.6 kgf-m or 33.6 ft.lbs)
Top Speed142.0 km/h (88.2 mph)
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity12.00 litres (3.17 gallons)
Emissions
Chassis
Frame TypeTwin cradle made if high-strength steel tubes
Rake
Trail
Front SuspensionTilting parallelogram with 4 arms supporting 2 steering tubes.
Front Travel85 mm (3.3 inches)
Rear Suspension2 double acting hydraulic shock absorbers
Rear Travel110 mm (4.3 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,350 mm (53.1 inches)
Total Length2,160 mm (85.0 inches)
Total Width760 mm (29.9 inches)
Ground Clearance
Wheelbase1,550 mm (61.0 inches)
Dry Weight261.7 kg (577.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-13
Rear Tire/Tyre140/70-14
Front BrakesDouble disc. ABS
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesSingle disc. ABS
Rear Brake Diameter240 mm (9.4 inches)
WheelsAluminium alloy
Comments
Two front wheels.
