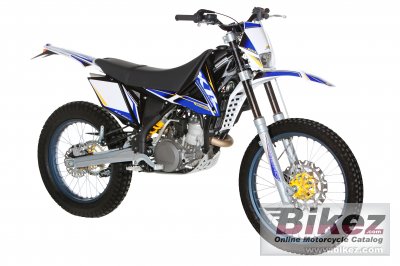

These are the known mechanical and performance specifications for your 2016 Sherco 125 X-Ride.
Basic Specs
Engine
Displacement124.70 ccm (7.61 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke56.0 x 50.7 mm (2.2 x 2.0 inches)
Valves/Cylinder
FuelingCarburettor. Dell´Orto VHST 28 Carburettor, with resumption pump
IgnitionLeonelli
ExhaustStainless steel header pipe
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveChain
ClutchWet multidisc, with hydraulic command
Driveline5 speed sequential gearbox with security selector system to prevent no-gear insertion. Gears in primary drive, secondary drive with chain .
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.00 litres (1.85 gallons)
Emissions
Chassis
Frame TypePerimetric 25CD4S Steel pipes
Rake
Trail
Front SuspensionPAIOLI 40 mm hydraulic fork
Front Travel
Rear SuspensionOLLE adjustable hydraulic single damper
Rear Travel
Seat
Seat Height850 mm (33.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance325 mm (12.8 inches)
Wheelbase1,404 mm (55.3 inches)
Dry Weight87.0 kg (191.8 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre1.60-21
Rear Tire/Tyre2.15-18
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
WheelsAnodized light alloy rims
Comments
Spanish brand.
