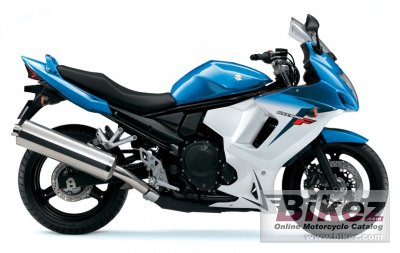

These are the known mechanical and performance specifications for your 2016 Suzuki GSX650F ABS.
Basic Specs
Engine
Displacement656.00 ccm (40.03 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke65.5 x 48.7 mm (2.6 x 1.9 inches)
Valves/Cylinder4
FuelingInjection
IgnitionElectronic ignition (transistorised)
Exhaust
LubricationWet sump
CoolingLiquid
Performance
Horespower84.00 HP (61.3 kW)
Torque62.00 Nm (6.3 kgf-m or 45.7 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity19.00 litres (5.02 gallons)
Emissions
Chassis
Frame TypeDouble cradle, steel
Rake26.0°
Trail108 mm (4.3 inches)
Front SuspensionKYB telescopic, coil spring, oil damped
Front Travel
Rear SuspensionLink type, coil spring, oil damped
Rear Travel
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,235 mm (48.6 inches)
Total Length2,130 mm (83.9 inches)
Total Width760 mm (29.9 inches)
Ground Clearance125 mm (4.9 inches)
Wheelbase1,470 mm (57.9 inches)
Dry Weight
Wet Weight245.0 kg (540.1 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre160/60-ZR17
Front BrakesDouble disc. ABS
Front Brake Diameter130 mm (5.1 inches)
Rear BrakesSingle disc. ABS
Rear Brake Diameter128 mm (5.0 inches)
Wheels
Comments
