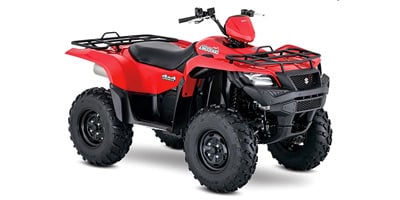

These are the known mechanical and performance specifications for your 2016 Suzuki KingQuad 500AXi Power Steering.
Basic Specs
Year2016
MakeSuzuki
ModelSuzuki KingQuad 500AXi Power Steering
TypeATV
CostUS$ 8299. Prices depend on country, taxes, accessories, etc.
Engine
Displacement493.00 ccm (30.08 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke87.5 x 82.0 mm (3.4 x 3.2 inches)
Valves/Cylinder4
FuelingInjection
IgnitionCDI
Exhaust
LubricationWet sump
CoolingLiquid
Drivetrain
GearboxAutomatic
Final DriveShaft drive (cardan)
Clutch
Driveline2WD, 4WD and differential-lock 4WD
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.50 litres (4.62 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionIndependent, double wishbone, oil-damped. Spring preloaded, 5 way adjustable
Front Travel170 mm (6.7 inches)
Rear SuspensionIndependent, double wishbone, oil-damped. Spring preloaded, 5 way adjustable
Rear Travel196 mm (7.7 inches)
Seat
Seat Height920 mm (36.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,285 mm (50.6 inches)
Total Length2,165 mm (85.2 inches)
Total Width1,250 mm (49.2 inches)
Ground Clearance260 mm (10.2 inches)
Wheelbase1,285 mm (50.6 inches)
Dry Weight
Wet Weight300.0 kg (661.4 pounds)
Wheels & Brakes
Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
