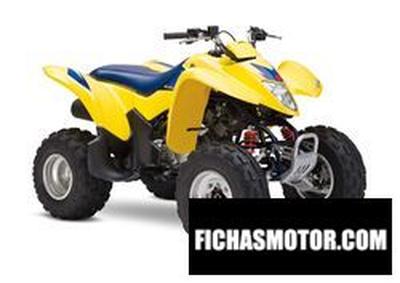

These are the known mechanical and performance specifications for your 2016 Suzuki QuadSport Z250.
Basic Specs
Year2016
MakeSuzuki
ModelSuzuki QuadSport Z250
TypeATV
CostUS$ 4199. Euro 4250. UK £ 3499. Prices depend on country, taxes, accessories, etc.
Engine
Displacement250.00 ccm (15.26 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke66.0 x 72.0 mm (2.6 x 2.8 inches)
Valves/Cylinder
FuelingCarburettor. MIKUNI BSR29, single
IgnitionElectronic ignition
Exhaust
LubricationWet sump
CoolingAir
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline5-forward and 1-reverse
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity9.70 litres (2.56 gallons)
Emissions
Chassis
Frame TypeIndependent double A-arm front suspension with preload-adjustable oil-damped shock absorbers - provides 6.3 inches of wheel travel for a comfortable ride over all types of terrain
Rake
Trail
Front SuspensionIndependent, double wishbone, coil spring, oil damped
Front Travel
Rear SuspensionSwingarm type, coil spring, oil damped
Rear Travel
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,720 mm (67.7 inches)
Total Width1,070 mm (42.1 inches)
Ground Clearance230 mm (9.1 inches)
Wheelbase1,135 mm (44.7 inches)
Dry Weight
Wet Weight177.0 kg (390.2 pounds)
Wheels & Brakes
Front Tire/Tyre22/7-10
Rear Tire/Tyre20/10-9
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
