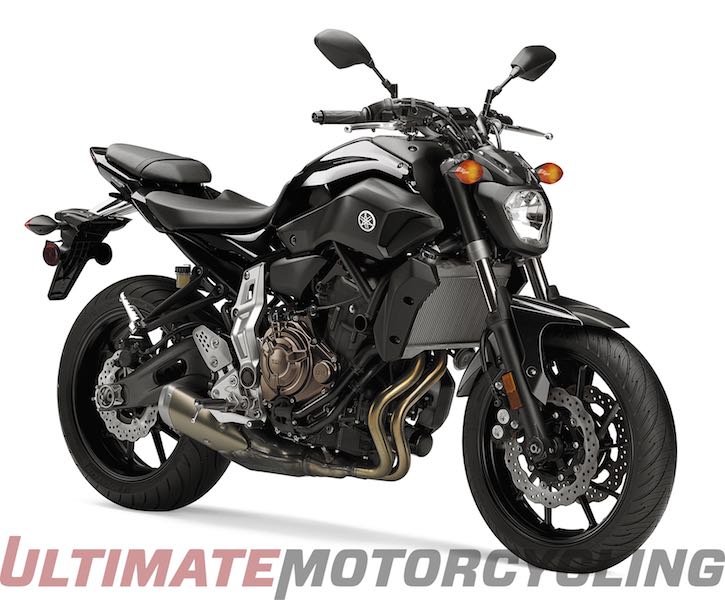

These are the known mechanical and performance specifications for your 2016 Yamaha FZ-07.
Basic Specs
Year2016
MakeYamaha
ModelYamaha FZ-07
TypeNaked bike
CostUS$ 6990. Prices depend on country, taxes, accessories, etc.
Engine
Displacement689.00 ccm (42.04 cubic inches)
TypeCrossplane Concept, 270 degree crank
DetailsTwin, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke80.0 x 68.6 mm (3.1 x 2.7 inches)
Valves/Cylinder4
FuelingInjection
IgnitionTCI: Transistor Controlled Ignition
Exhaust
LubricationWet sump
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet, Multiple Disc
DrivelineConstant mesh
Fuel Economy & Polution
Fuel Consumption4.06 litres/100 km (24.6 km/l or 57.94 mpg)
Fuel Capacity14.00 litres (3.70 gallons)
Emissions94.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeDiamond-type, backbone high-tensile-steel
Rake24.0°
Trail
Front Suspension41mm fork
Front Travel130 mm (5.1 inches)
Rear SuspensionSingle shock, adjustable preload
Rear Travel130 mm (5.1 inches)
Seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,090 mm (42.9 inches)
Total Length2,085 mm (82.1 inches)
Total Width744 mm (29.3 inches)
Ground Clearance
Wheelbase1,400 mm (55.1 inches)
Dry Weight
Wet Weight180.1 kg (397.0 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Hydraulic.
Front Brake Diameter282 mm (11.1 inches)
Rear BrakesSingle disc. Hydraulic.
Rear Brake Diameter245 mm (9.6 inches)
Wheels
