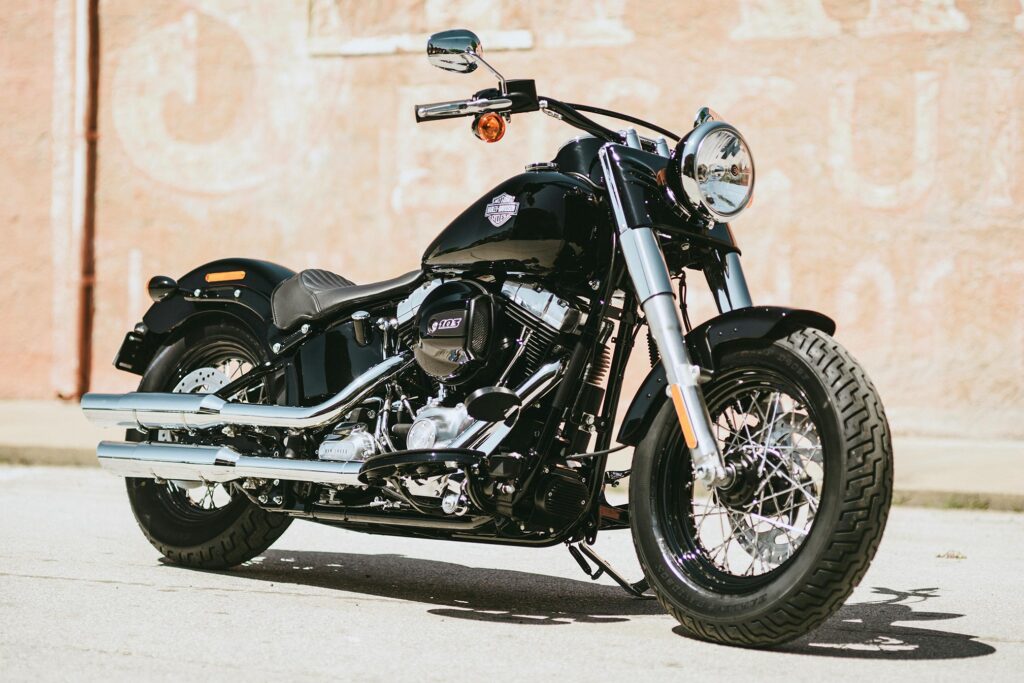

These are the known mechanical and performance specifications for your 2017 Harley-Davidson Softail Slim.
Basic Specs


Year2017
MakeHarley-Davidson
ModelHarley-Davidson Softail Slim
TypeCustom / cruiser
CostUS$ 15099. Euro 19975. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1690.00 ccm (103.12 cubic inches)
TypeHigh Output Twin Cam 103B
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, over/under shotgun exhaust with slash-cut mufflers
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain 34/46 ratio primary drive
Performance
Horespower75.00 HP (54.7 kW)
Torque126.00 Nm (12.8 kgf-m or 92.9 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity18.90 litres (4.99 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake31.0°
Trail147 mm (5.8 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height650 mm (25.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,350 mm (92.5 inches)
Total Width
Ground Clearance115 mm (4.5 inches)
Wheelbase1,636 mm (64.4 inches)
Dry Weight308.0 kg (679.0 pounds)
Wet Weight321.0 kg (707.7 pounds)
Wheels & Brakes
Front Tire/TyreMT90-B16
Rear Tire/TyreMU85-B16
Front BrakesSingle disc. Optional ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. Optional ABS. 2-piston
Rear Brake Diameter
WheelsBlack, Laced Steel
