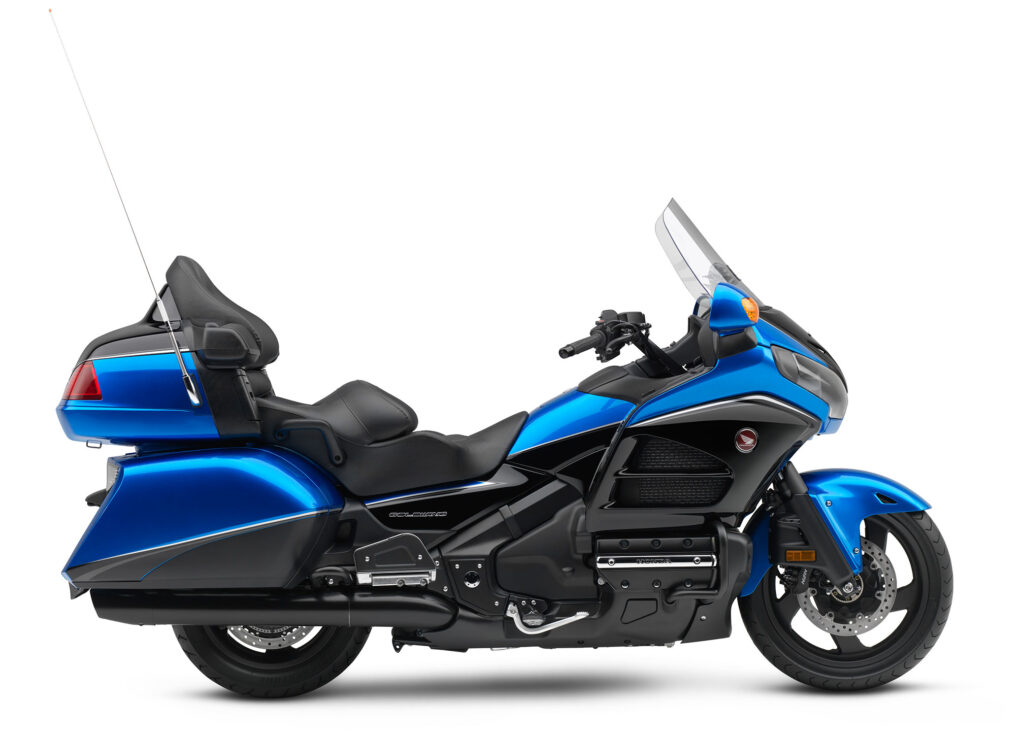

These are the known mechanical and performance specifications for your 2017 Honda Gold Wing Audio Comfort Navi XM.
Basic Specs
Year2017
MakeHonda
ModelHonda Gold Wing Audio Comfort Navi XM
TypeTouring
CostUS$ 26899. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1832.00 ccm (111.79 cubic inches)
Type
DetailsSix cylinder boxer, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke74.0 x 71.0 mm (2.9 x 2.8 inches)
Valves/Cylinder2
FuelingInjection. Programmed Fuel Injection
IgnitionComputer-controlled digital with three-dimensional mapping
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchMulti-plate with diaphragm spring in oil bath
Driveline
Performance
Horespower116.67 HP (85.2 kW)
Torque167.00 Nm (17.0 kgf-m or 123.2 ft.lbs)
Top Speed200.0 km/h (124.3 mph)
Fuel Economy & Polution
Fuel Consumption6.72 litres/100 km (14.9 km/l or 35.00 mpg)
Fuel Capacity25.00 litres (6.61 gallons)
Emissions155.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake29.2°
Trail109 mm (4.3 inches)
Front Suspension45mm cartridge fork with anti-dive system, 4.8 inches travel
Front Travel
Rear SuspensionPro Arm® single-side swingarm with Pro-Link® single shock with computer-controlled spring preload adjustment with two memory presets; 4.1 inches travel
Rear Travel
SeatUrethane. Waterproof cover.
Seat Height740 mm (29.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,445 mm (56.9 inches)
Total Length2,630 mm (103.5 inches)
Total Width945 mm (37.2 inches)
Ground Clearance
Wheelbase1,689 mm (66.5 inches)
Dry Weight
Wet Weight410.1 kg (904.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/70-R18
Rear Tire/Tyre180/60-R16
Front BrakesDouble disc. CBS three-piston calipers
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc. CBS three-piston calipers
Rear Brake Diameter316 mm (12.4 inches)
Wheels
Comments
Model ID: GL1800.
