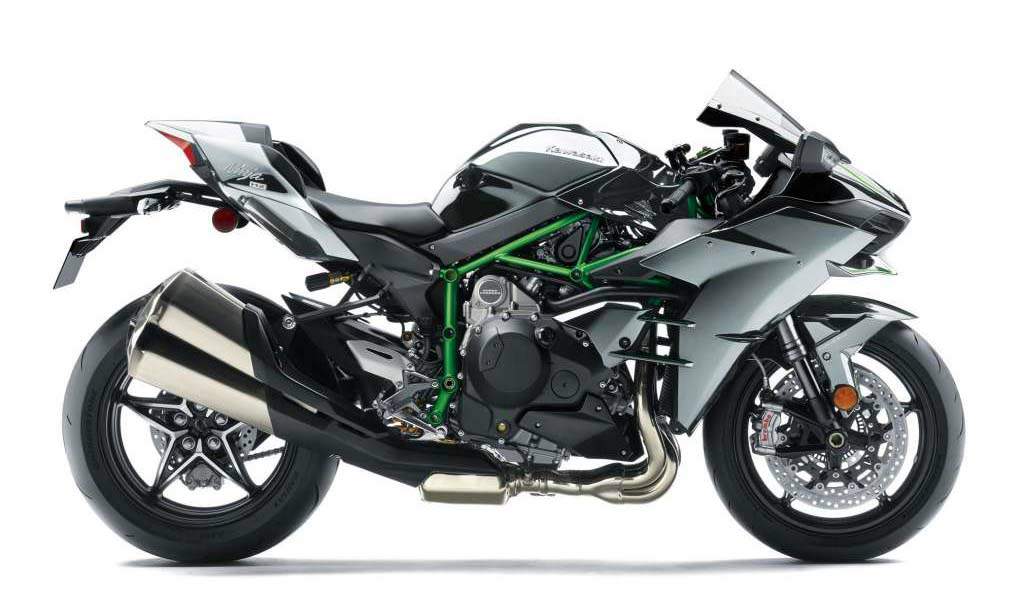

2017 Kawasaki Ninja H2 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Kawasaki Ninja H2.

Basic Specs

Year2017
MakeKawasaki
ModelKawasaki Ninja H2
TypeSport
CostUS$ 2800. Prices depend on country, taxes, accessories, etc.

Engine

Displacement998.00 ccm (60.90 cubic inches)
TypeKawasaki supercharger intake system
DetailsIn-line four, four-stroke
Max RPM
Compression8.5:1
Bore/Stroke76.0 x 55.0 mm (3.0 x 2.2 inches)
Valves/Cylinder4
FuelingInjection
IgnitionDigital
Exhaust
LubricationForced lubrication, wet sump with oil cooler
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multi-disc, manual
DrivelineSealed chain

Performance

Horespower200.00 HP (146.0 kW)
Torque133.50 Nm (13.6 kgf-m or 98.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption8.53 litres/100 km (11.7 km/l or 27.58 mpg)
Fuel Capacity17.00 litres (4.49 gallons)
Emissions197.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTrellis, high-tensile steel with Swingarm Mounting Plate
Rake27.0°
Trail103 mm (4.1 inches)
Front Suspension43 mm inverted fork with rebound and compression damping, spring preload adjustability and top-out springs
Front Travel119 mm (4.7 inches)
Rear SuspensionUni-Trak, Öhlins TTX36 gas-charged shock with piggyback reservoir, compression damping, rebound damping, preload adjustability and top-out spring
Rear Travel135 mm (5.3 inches)
Seat
Seat Height825 mm (32.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,125 mm (44.3 inches)
Total Length2,085 mm (82.1 inches)
Total Width770 mm (30.3 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,455 mm (57.3 inches)
Dry Weight
Wet Weight238.1 kg (524.8 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre200/55-ZR17
Front BrakesDouble disc. Floating discs.
Front Brake Diameter330 mm (13.0 inches)
Rear BrakesSingle disc
Rear Brake Diameter250 mm (9.8 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Ninja H2. This Sport model is powered by a Kawasaki supercharger intake system In-line four, four-stroke engine with 998.00 ccm (60.90 cubic inches) of actual displacement before 8.5:1 compression. Fueling is metered via Injection allowing this machine to produce its 200.00 HP (146.0 kW) horsepower and 133.50 Nm (13.6 kgf-m or 98.5 ft.lbs) torque. According to our records engine heat of the Kawasaki Ninja H2 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 200/55-ZR17 . The entire package is supported by the frame, Trellis, high-tensile steel with Swingarm Mounting Plate. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Floating discs. front brakes and Single disc rear brakes. The Kawasaki Ninja H2 was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

154.5 kW (210 PS) at 11.000 rpm with RAM air.
