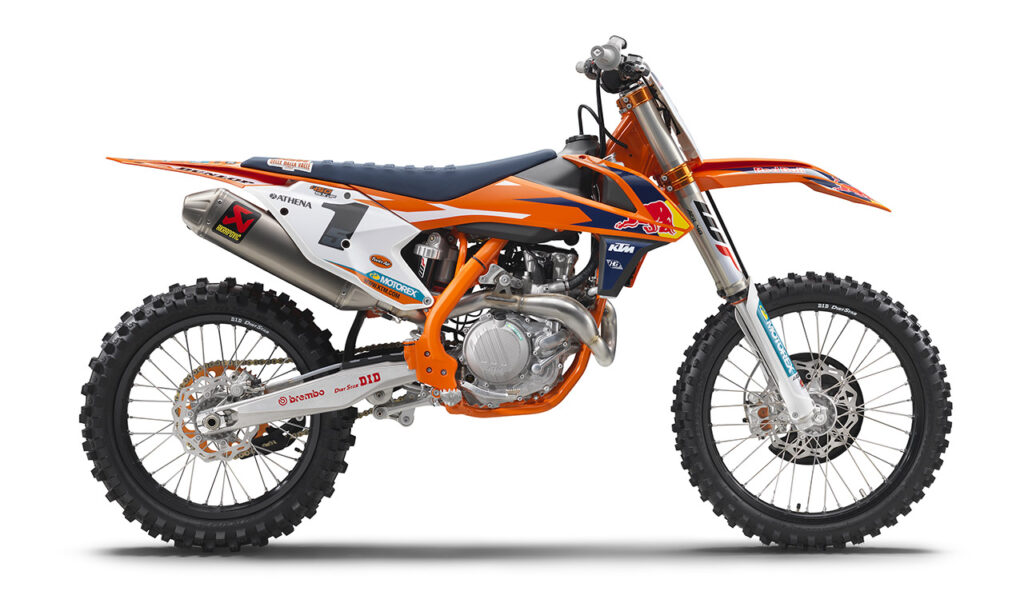

These are the known mechanical and performance specifications for your 2017 KTM 250 SX-F Factory Edition.
Basic Specs
Engine
Displacement249.91 ccm (15.25 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM14000
Compression13.5:1
Bore/Stroke78.0 x 52.3 mm (3.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionKeihin EMS
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveChain
ClutchWet, CSS multi-disc clutch, Brembo hydraulics
Driveline13:48. Primary drive: 22:68.
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.00 litres (1.85 gallons)
Emissions
Chassis
Frame Type25CrMo4 steel central-tube frame
Rake26.1°
Trail
Front SuspensionWP-USD, AER 48, Ø 48 mm
Front Travel300 mm (11.8 inches)
Rear SuspensionWP shock absorber with linkage
Rear Travel300 mm (11.8 inches)
Seat
Seat Height960 mm (37.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance370 mm (14.6 inches)
Wheelbase1,485 mm (58.5 inches)
Dry Weight98.5 kg (217.2 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. Brake calipers on floating bearings
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Brake calipers on floating bearings
Rear Brake Diameter260 mm (10.2 inches)
WheelsCNC machined hubs. Excel rims. Wire spoked.
