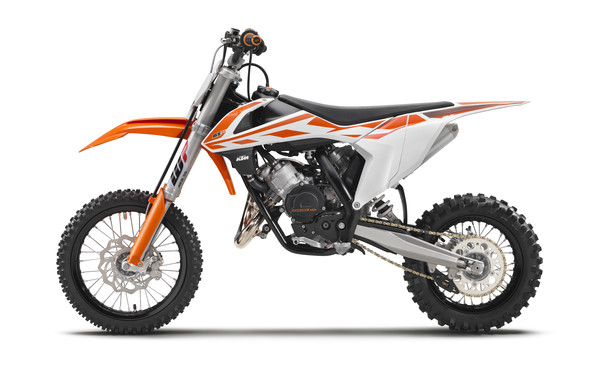

These are the known mechanical and performance specifications for your 2017 KTM 65 SX.
Basic Specs
Engine
Displacement64.85 ccm (3.96 cubic inches)
TypeReed intake.
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke45.0 x 40.8 mm (1.8 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni TMX
IgnitionAET digital EMS
Exhaust
LubricationMixture oil lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet, multi-disc clutch, Formula hydraulics
Driveline14:48. Primary drive: 23:75 straight cut spur gear.
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity3.50 litres (0.92 gallons)
Emissions
Chassis
Frame TypeCentral-tube frame with double-cradle
Rake25.5°
Trail
Front SuspensionWP upside-down Ø 35 mm
Front Travel215 mm (8.5 inches)
Rear SuspensionWP shock absorber
Rear Travel270 mm (10.6 inches)
Seat
Seat Height750 mm (29.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance280 mm (11.0 inches)
Wheelbase1,137 mm (44.8 inches)
Dry Weight53.0 kg (116.8 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. Four-piston calipers. Wave brake discs.
Front Brake Diameter198 mm (7.8 inches)
Rear BrakesSingle disc. Two-piston calipers. Wave brake discs.
Rear Brake Diameter160 mm (6.3 inches)
WheelsBlack anodized, aluminum rims
