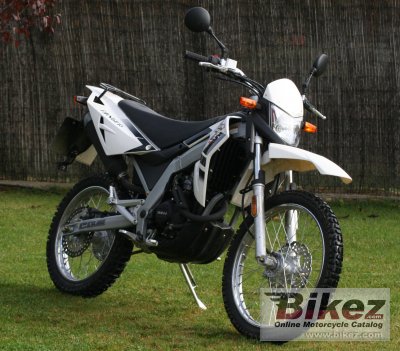

These are the known mechanical and performance specifications for your 2017 MH Ranger 125 LC.
Basic Specs
Year2017
MakeMH
ModelMH Ranger 125 LC
TypeEnduro / offroad
Cost Euro 2275. Prices depend on country, taxes, accessories, etc.
Engine
Displacement125.00 ccm (7.63 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke
Valves/Cylinder
FuelingCarburettor. Keihin 26 mm.
IgnitionC.D.I.
Exhaust
Lubrication
CoolingLiquid
Performance
Horespower12.00 HP (8.8 kW)
Torque9.20 Nm (0.9 kgf-m or 6.8 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption2.20 litres/100 km (45.5 km/l or 106.92 mpg)
Fuel Capacity17.00 litres (4.49 gallons)
Emissions51.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeDouble firder in steel
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionDouble monoshock arm with crank of progressive system and absorver with adjustable wharf
Rear Travel
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,066 mm (42.0 inches)
Total Length2,010 mm (79.1 inches)
Total Width855 mm (33.7 inches)
Ground Clearance
Wheelbase1,140 mm (44.9 inches)
Dry Weight127.0 kg (280.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre80/90-21
Rear Tire/Tyre110/80-18
Front BrakesSingle disc
Front Brake Diameter280 mm (11.0 inches)
Rear BrakesSingle disc
Rear Brake Diameter210 mm (8.3 inches)
Wheels
Comments
Brand previously called Motorhispania. Made in Spain.
