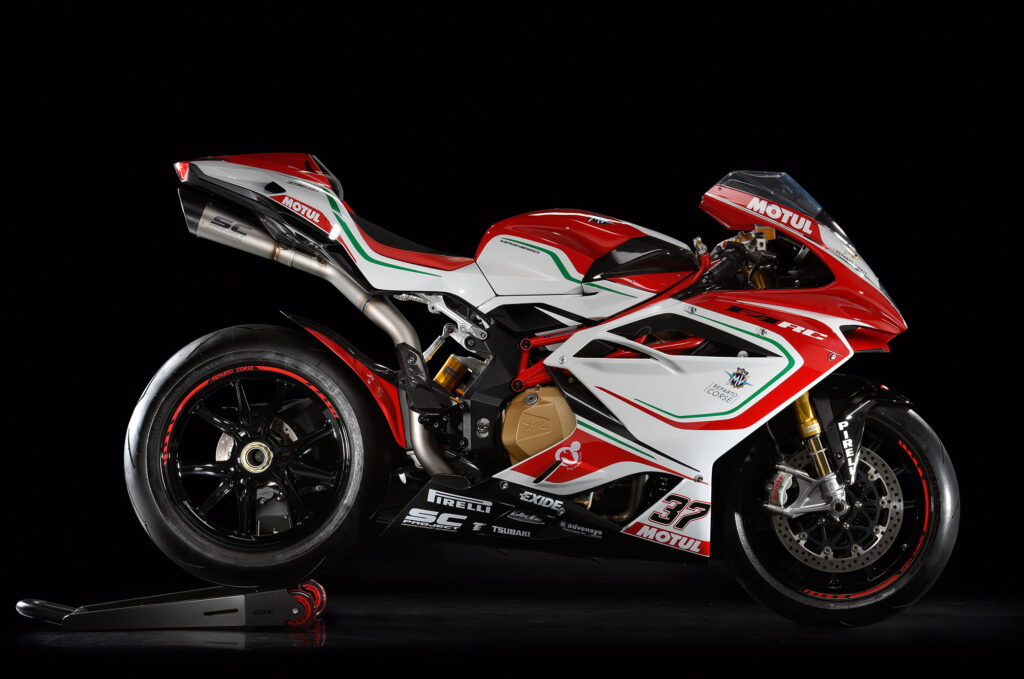

2017 MV Agusta F4 RC Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 MV Agusta F4 RC.

Basic Specs

Year2017
MakeMV Agusta
ModelMV Agusta F4 RC
TypeSport
CostUS$ 46000. Prices depend on country, taxes, accessories, etc.

Engine

Displacement998.00 ccm (60.90 cubic inches)
TypeRadial valve
DetailsIn-line four, four-stroke
Max RPM
Compression13.4:1
Bore/Stroke79.0 x 50.9 mm (3.1 x 2.0 inches)
Valves/Cylinder4
FuelingInjection
IgnitionIntegrated ignition - injection system MVICS (Motor and Vehicle Integrated Control System) with eight injectors Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and
ExhaustTitanium single exit exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multi-disc with back torque limiting device
Driveline6-speed constant mesh

Performance

Horespower212.00 HP (154.7 kW)
Torque115.00 Nm (11.7 kgf-m or 84.8 ft.lbs)
Top Speed302.0 km/h (187.7 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeCrMo Steel Tubular Trellis. Aluminium alloy swing arm.
Rake
Trail100 mm (4.0 inches)
Front SuspensionÖhlins USD front fork, NIX 30 type with TIN coating
Front Travel124 mm (4.9 inches)
Rear SuspensionÖhlins progressive, TTX36 twin tube rear shock absorber with piggyback r esevoir
Rear Travel120 mm (4.7 inches)
Seat
Seat Height830 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,115 mm (83.3 inches)
Total Width750 mm (29.5 inches)
Ground Clearance115 mm (4.5 inches)
Wheelbase1,430 mm (56.3 inches)
Dry Weight175.0 kg (385.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre200/55-ZR17
Front BrakesDouble disc. Optional ABS. Brembo radial-type, single-piece with 4 pistons
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Optional ABS.
Rear Brake Diameter210 mm (8.3 inches)
WheelsForged aluminium alloy rims

Comments

It appears you're interested in specifications for the MV Agusta F4 RC. This Sport model is powered by a Radial valve In-line four, four-stroke engine with 998.00 ccm (60.90 cubic inches) of actual displacement before 13.4:1 compression. Fueling is metered via Injection allowing this machine to produce its 212.00 HP (154.7 kW) horsepower and 115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) torque. According to our records engine heat of the MV Agusta F4 RC is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 200/55-ZR17 . The entire package is supported by the frame, CrMo Steel Tubular Trellis. Aluminium alloy swing arm.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Optional ABS. Brembo radial-type, single-piece with 4 pistons front brakes and Single disc. Optional ABS. rear brakes. The MV Agusta F4 RC was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Ride-By-Wire system. Traction control. Electronically Assisted Shift Option. Limited edition of 250 bikes.
